Part Number

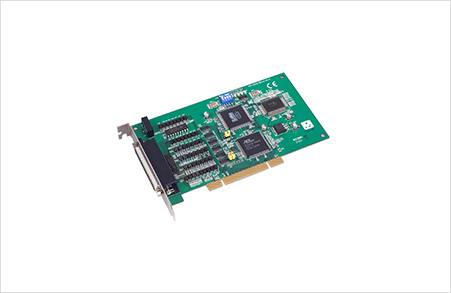

PCI-1243U

General

Power Consumption

Typical: 5 V @ 340 mA; Max.: 5 V @ 500 mA

Temperature (Operating)

0 ~ 60°C (32 ~ 140°F)

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Temperature (Storage)

-20 ~ 80°C (-4 ~ 170°F)

Bus

Universal PCI V2.2

Dimensions

175 x 100 mm (6.9" x 3.9")

Connector

1 x DB-62 Female

Axes

Number of Axes

4

Isolated Digital I/O

Channels

8

Isolation Protection

3,750 VRMS

Advanced Functions

General Purpose<br>DO Channels

8

General Purpose<BR>DI Channels

8

Pulse Type Motion Control

Motor Driver Support

Stepping

Interpolation

2-axis linear, 3-axis linear, 2-axis circular
