Part Number

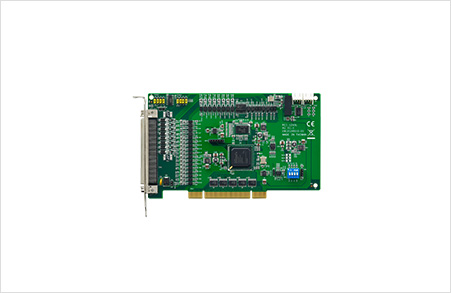

PCI-1245L-AE

General

Power Consumption

Typical: 5 V @ 0.6 A, Max.: 5 V @ 1 A

Temperature (Operating)

0 ~ 60°C (32 ~ 140°F)

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Temperature (Storage)

-20 ~ 85°C (-4 ~ 185°F)

Connector

1 x 100-pin SCSI Female Connector

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Bus Type

Universal PCI V2.2

Encoder Interface

Isolation Protection

2,500 VDC

Input Type

Quadrature (A/B phase) or up/down

Input Range

5 ~ 10 V

Max. Input Frequency

4 MHz under 4xAB mode

Counts per Enc. Cycle

x1, x2, x4 (A/B phase only)

Pulse Type Motion Control

Motor Driver Support

Pulse-type servo/stepping

Number of Axis

4

Interpolation

2-axis linear interpolation

Max. Output Speed

1 Mbps

Step Count Range

±2, 147, 483, 646

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Machine Interfaces

LMT+, LMT-, ORG

Servo Driver Interfaces

ALM, INP

General Digital I/O

16-ch DI, 16-ch DO
