Part Number

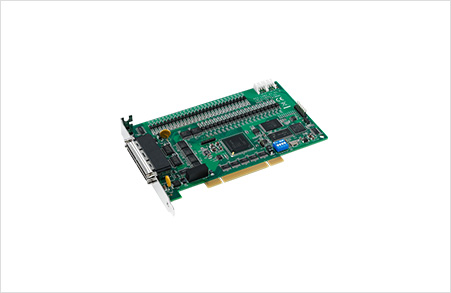

PCI-1245E-AE

PCI-1285E-AE

General

Power Consumption

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

Typical: 5 V @ 530 mA 3.3 V @ 160 mA; Max.: 5 V @ 500 mA 3.3 V @ 1 A

Temperature (Operating)

0 ~ 60°C (32 ~ 140°F)

0 ~ 60°C (32 ~ 140°F)

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Temperature (Storage)

-20 ~ 85°C (-4 ~ 185°F)

-20 ~ 85°C (-4 ~ 185°F)

Bus

Universal PCI V2.2

Universal PCI V2.2

Dimensions

175 x 100 mm (6.9" x 3.9")

175 x 100 mm (6.9" x 3.9")

Connector

1 x 100-pin SCSI Female Connector

2 x 100-pin mini-SCSI female connector

Encoder Interface

Isolation Protection

2,500 VDC

2,500 VDC

Input Type

Quadrature (A/B phase) or up/down

Quadrature (A/B phase) or up/down

Input Range

5 ~ 15 V

5 ~ 10 V

Max. Input Frequency

10 MHz under 4xAB mode

10 MHz under 4xAB mode

Pulse Type Motion Control

Motor Driver Support

Pulse-type servo/stepping

Pulse-type servo/stepping

Number of Axis

4

8

Interpolation

2-axis linear

2 to 8-axis linear

Max. Output Speed

5 Mbps

5 Mbps

Step Count Range

±2, 147, 483, 646

±2, 147, 483, 646

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Position Counters

Range of command and actual position

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

T-Curve, S-Curve

Machine Interfaces

LMT+, LMT-, ORG

LMT+, LMT-, ORG

Servo Driver Interfaces

ALM, INP

ALM, INP

General Digital I/O

16-ch DI, 16-ch DO

32-ch DI, 32-ch DO
