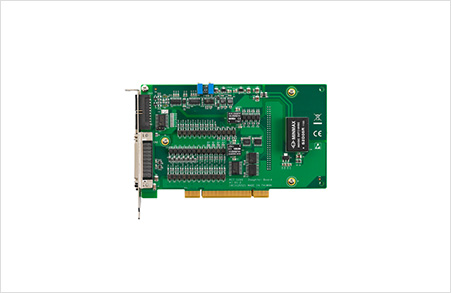

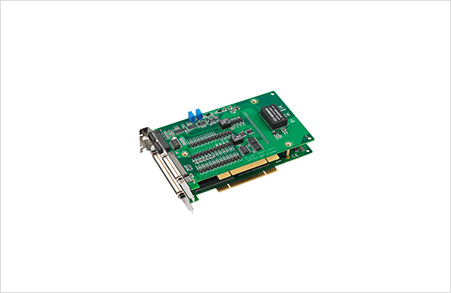

PCI-1265
編碼器輸入規格為4xAB相 模式 10MHz，CW/CCW模式2.5 MHz
脈沖輸出高達5M PPS/軸
DSP中設計了具備內存緩沖區軌跡規劃
支持電子齒輪和螺旋插補功能
支持電子凸輪功能（DSP緩存區中提供了256個點用于規劃凸輪輪廓）
硬件緊急輸入
看門狗定時器
位置鎖存信號均通過 ORG 及 Index 訊號位置比較觸發高達 100kHz,可設置的位置比較點多達100K個。
中斷可編程設計支持半閉環脈沖控制的龍門模式
規格

Part Number

PCI-1265-AE

General

Power Consumption

Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A

Temperature (Operating)

0 ~ 60°C (32 ~ 140°F)

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Temperature (Storage)

-20 ~ 85°C (-4 ~ 185°F)

Bus

Universal PCI V2.2

Dimensions

175 x 100 mm (6.9" x 3.9")

Connector

1 x 100-pin & 1 x 50-pin SCSI Female Connector

Advanced Function

Servo On Output Channels

6

Encoder Interface

Isolation Protection

2,500 VDC

Input Type

Quadrature (A/B phase) or up/down

Input Range

5 ~ 15 V

Max. Input Frequency

10 MHz under 4xAB mode

Axes

Linear Interpolation

V

2-axis Circle<br>Interpolation

V

Number of Axes

6

Advanced Functions

General Purpose<br>DO Channels

32

General Purpose<BR>DI Channels

31

Pulse Type Motion Control

Motor Driver Support

Servo/stepping

Number of Axis

6

Interpolation

2 to 6-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation

Max. Output Speed

5 Mbps

Step Count Range

±2, 147, 483, 646

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Machine Interfaces

LMT+, LMT-, ORG

Servo Driver Interfaces

ALM, INP

General Digital I/O

32-ch DI, 32-ch DO
