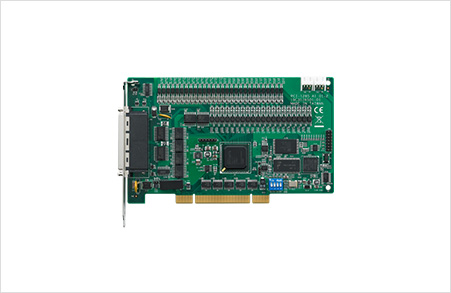

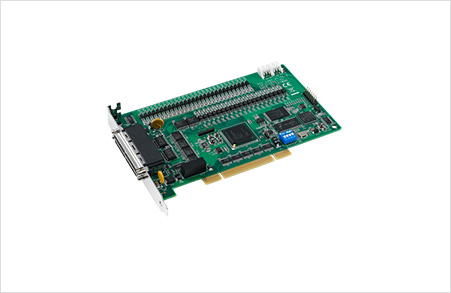

PCI-1285
編碼器輸入規格為4xAB模式10 MHz,CW/CCW模式2.5 MHz
脈沖輸出高達5M pps/軸
DSP中規劃軌跡的10k的內存緩沖區
支持電子齒輪和螺旋插補功能
支持電子凸輪，DSP中規劃內存放置256點的CAM文件
硬件緊急輸入
看門口定時器
位置鎖存信號均通過ORG / Index 信號實現
位置比較觸發頻率高達100KHz,DSP內存多達100K
可編程中斷
支持半死循環狀態下的龍門控制
規格

Part Number

PCI-1285-AE

General

Power Consumption

Typical: 5 V @ 300 mA 3.3 V @ 1.2 A; Max.: 5 V @ 400 mA 3.3 V @ 1.5 A

Temperature (Operating)

0 ~ 60°C (32 ~ 140°F)

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Temperature (Storage)

-20 ~ 85°C (-4 ~ 185°F)

Bus

Universal PCI V2.2

Dimensions

175 x 100 mm (6.9" x 3.9")

Connector

2 x 100-pin mini-SCSI female connector

Encoder Interface

Isolation Protection

2,500 VDC

Input Type

Quadrature (A/B phase) or up/down

Input Range

5 ~ 15 V

Max. Input Frequency

10 MHz under 4xAB mode

Pulse Type Motion Control

Motor Driver Support

Pulse-type servo/stepping

Number of Axis

8

Interpolation

2 to 8-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation

Max. Output Speed

5 Mbps

Step Count Range

±2, 147, 483, 646

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Machine Interfaces

LMT+, LMT-, ORG

Servo Driver Interfaces

ALM, INP

General Digital I/O

32-ch DI, 32-ch DO
