Part Number

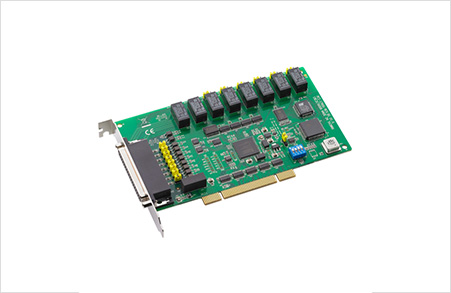

PCI-1760U-BE

General

Power Consumption

Typical: 5 V @ 450 mA, Max.: 5 V @ 850mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

Bus

PCI

I/O Connectors

37-pin D-type female connector

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Timer/Counter

Resolution

16 bits Isolated counter and 32 bits PWM output

Channels

8

Max. Input Frequency

500 Hz

Isolated Digital I/O

Input Channels

8

Input Range

4.5 ~ 12 VDC

Relay Output

Max. Switching Power

120 V AC @ 0.5 A or 30 V DC @ 1 A

Channels

8
