Part Number

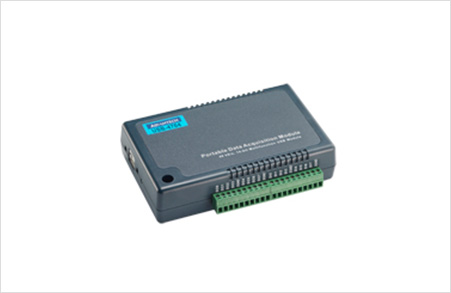

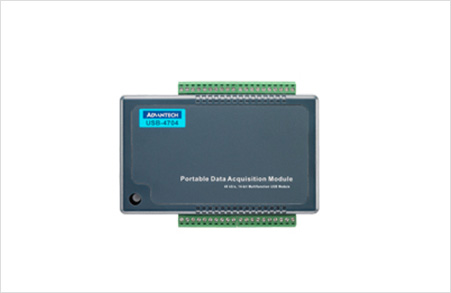

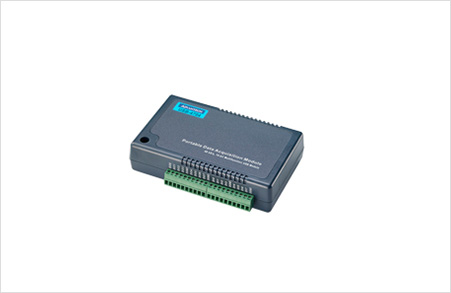

USB-4704-AE

General

Power Consumption

Typical: 5V @ 360mA; Max.: 5 V @450 mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

132 x 80 x 32 mm (5.2" x 3.15" x 1.26")

Bus

USB 2.0

I/O Connectors

Onboard screw terminal

Operating Temperature

0 ~ 55°C (32 ~ 131°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Analog Input

Sampling Rates(S/s)

48 K

Resolution(Bits)

14

Bipolar Inputs (V)

Single-ended: ±10; Differential: ±1, ±1.25, ± 2, ± 2.5, ±4, ±5, ±10, ±20

Channels

8

Type

Scan

Analog Output

Resolution(Bits)

12

Channels

2

Update Rate(S/s)

Static

Timer/Counter

Resolution

32 bits

Channels

1

Max. Input Frequency

5 MHz

TTL DI/O

Input Channels

8

Output Channels

8
