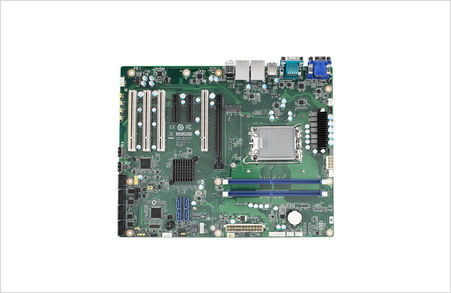

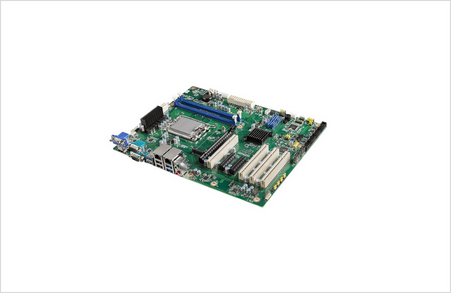

AIMB-708
Intel? 12th generation Core? i9/i7/i5/i3 & Pentium?/Celeron? processor with H610E chipset
Two DIMM sockets up to 64GB DDR4 3200

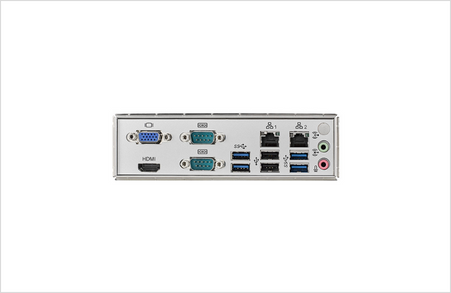

Dual display HDMI/VGA and dual GbE LAN
M.2, SATA 3.0, USB 3.2 Gen1
5 RS-232 and 1 RS-232/422/485 serial ports
1 PCIe x16 (Gen 4) and 2 PCIe x4 (x2 Gen 3 link), and 4 PCI expansion slots
Note 1: Legacy platform is not supported.
Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
Note 3: Intel? Platform Trust Technology (Intel? PTT) ready for Windows 11.
