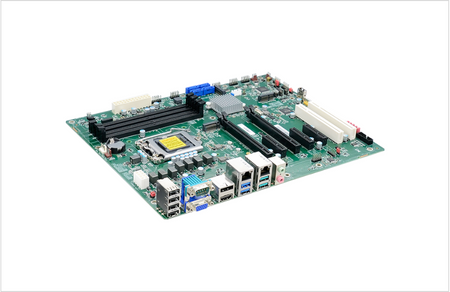

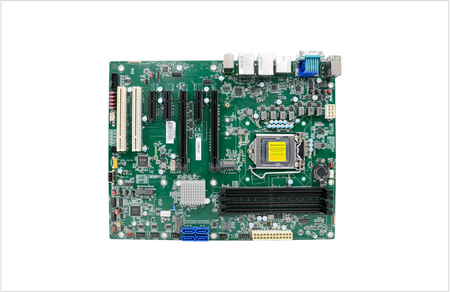

型號

EB-630-W480/Q470

處理器

10th Generation Intel® LGA 1200 Socket Processors,TDP support up to 125W

系統芯片組

Intel® W480E/Q470E Chipset

系統內存

4*288-pin Non-ECC UDIMM up to 128GB(Core? i5/i7 only support non-ECC)Dual Channel DDR4 2400/2666/2933MHz(ECC support: W480E only)

BIOS

Insyde SPI 128Mbit

以太網絡

1*Intel® I211AT PCIe (10/100/1000Mbps) 1*Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps)(only Xeon, Core i9/ i7/i5 supports iAMT)

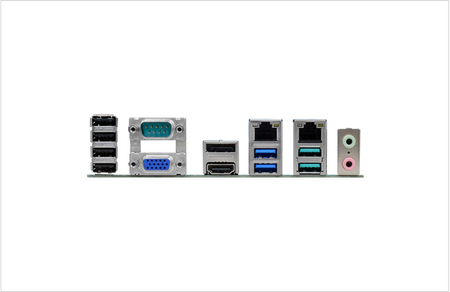

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

1*RS-232/422/485 (RS-232 w/power) (DB-9)

USB

2*USB 3.2 Gen1,2*USB 3.2 Gen2,4*USB 2.0

顯示

1*DP++,1*HDMI,1*VGA

音源

1*Line-out, 1 x Mic-in,1 x Line-in (opt., MOQ required)

內部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/ power)(2.54mm pitch) 4*RS-232 (2.54mm pitch)

USB

2*USB 3.2 Gen 2 (Key B 20-pin) 2*USB 2.0 (2.54mm pitch,Colay vertical Type A, opt.: MOQ required) 1*USB 2.0 Vertical Type A

音效

1*Front Audio Header,1*S/PDIF

DIO

1*16-bit DIO

SATA

4*SATA 3.0 (up to 6Gb/s, SATA 3) RAID 0/1/5/10

PS/2

1*PS/2 (mini-DIN-6)

擴展槽

2*PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal) 3*PCIe x4 (Gen 3) (2 x4 signal and 1 x1 signal) 2*PCI 1*M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support) 1*M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/Intel® Optane Memory and intel RST support) 1*M.2 2230 E key (USB 2.0/PCIe x1 shared with PCIe x1 slot, opt., MOQ reuqired）

顯示

1*DP++:resolution up to 4096x2160 @ 60Hz 1*HDMI1.4b:resolution up to 4096x2160 @ 24Hz 1*VGA:resolution up to 1920x1200 @ 60Hz

音頻

Realtek ALC888

溫度

工作溫度: -5 to 65°C 存儲溫度: -30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

濕度

工作濕度:5 to 95% RH, 存儲濕度:5 to 95% RH

尺寸

305mm (12")*244mm (9.6")
