型號

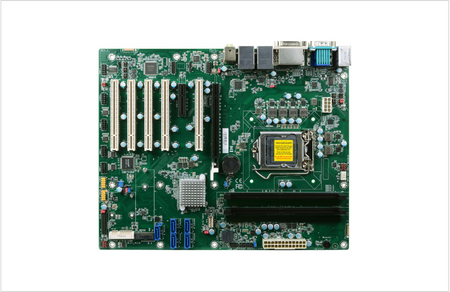

EB-630-H310

處理器

8/9th Generation Intel® CoreTM /Pentium®/Celeron®LGA 1151 Socket Processors

系統芯片組

Intel® H310 Chipset

系統內存

2*288-pin DIMM up to 64GB,Dual Channel DDR4 2400/2666MHz

BIOS

AMI SPI 128Mbit

以太網絡

1*Intel® I211AT PCIe （10/100/1000Mbps） 1*Intel® I219V Lan Phy (10/100/1000Mbps)

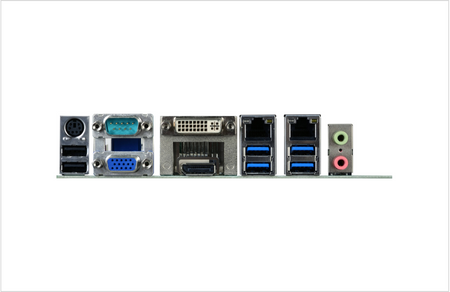

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

1*RS-232/422/485 (RS-232w/power)(DB-9)

USB

4*USB 3.1 (Gen1), 2*USB 2.0

PS/2

1*PS/2 (mini-DIN-6)

顯示

1*VGA, 1*DVI-I (DVI-D signal), 1*DP++

音源

1*Line-out, 1*Mic-in,1*Line-in (opt., MOQ required)

內部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/power)(2.54mm pitch) 4*RS-232 (2.54mm pitch)

USB

4*USB 2.0(2.54mm pitch)

音效

1*S/PDIF, 1*Front Audio Header

DIO

1*8-bit DIO

SATA

4*SATA 3.0 (up to 6Gb/s)

擴展槽

1*PCIe x16 (Gen 3), 1*PCIe x4 (Gen 2), 5*PCI

顯示

1*VGA：resolution up to 1920x1200 @ 60Hz 1*DVI-I (DVI-D signal)：resolution up to 1920x1200 @ 60Hz 1*DP++：resolution up to 4096x2160 @ 60Hz

音頻

Realtek ALC888

溫度

工作溫度：0 to 60°C, 存儲溫度： -30 to 60°C with RTC Battery；-40 to 85°C without RTC Battery

濕度

工作濕度:5 to 90% RH, 存儲濕度:5 to 90% RH

尺寸

305mm (12")*244mm (9.6")
