型號

EB-632-Q170

處理器

6/7th Generation Intel® Core? /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W

系統芯片組

Intel® Q170 Chipset

系統內存

4*288-pin Non-ECC U-DIMM up to 64GB,Dual Channel DDR4 2133/2400MHz

BIOS

Insyde SPI 128Mbit

以太網絡

1*Intel®I211AT PCIe (10/100/1000Mbps) 1*Intel®I219LM PCIe with iAMT11.0 (10/100/1000Mbps)(only Core i7/i5 supports iAMT)

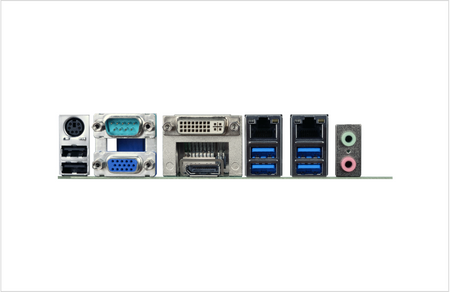

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

1*RS-232/422/485 (RS-232 w/power) (DB-9)

USB

4*USB 3.1 Gen1,2*USB 2.0

PS/2

1*PS/2(mini-DIN-6)

顯示

1*VGA,1*DVI-I(DVI-D signal),1*DP++

音源

1*Line-out,1*Mic-in,1*Line-in(opt., MOQ required)

內部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/ power)(2.54mm pitch) 4*RS-232 (2.54mm pitch)

USB

2*USB3.1Gen1,4*USB 2.0, 1*Vertical USB 2.0(type A)

音效

1*Front Audio Header,1*S/PDIF

DIO

1*8-bit DIO

SATA

5*SATA 3.0 (up to 6Gb/s)(1 SATA shared with mini PCIe (SATA), default at mini PCIe/2 SATA shared with M.2, default at M.2) RAID 0/1/5/10

擴展槽

2*PCIe x16 (1x16 or 2x8 signal)(Gen 3), 3*PCIe x4 (Gen 3), 2*PCI 1*M.2 2260/2280 M key(SATA3.0/PCIe Gen3 x 2 NVMe) 1*Mini PCIe (PCIe/mSATA/USB 2.0)

顯示

1*VGA: resolution up to 1920x1200 @ 60Hz 1*DVI-I (DVI-D signal): resolution up to 1920x1200 @ 60Hz 1*DP++: resolution up to 4096x2160 @ 60Hz

音頻

Realtek ALC888S-VD2-GR

溫度

工作溫度：0 to 60°C, 存儲溫度： -30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

濕度

工作濕度:5 to 90% RH， 存儲濕度:5 to 90% RH

尺寸

305mm (12")*244mm (9.6")
