型號

EB-600-H110

處理器

6/7th Generation Intel® Core?/Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 95W

系統芯片組

Intel® H110 Chipset

系統內存

2*288-pin DIMM up to 32GB，Dual Channel DDR4 2133/2400MHz

BIOS

Insyde SPI 128Mbit

以太網絡

1*Intel®I219V PCIe (10/100/1000Mbps) 1*Intel®I211AT PCIe (10/100/1000Mbps)

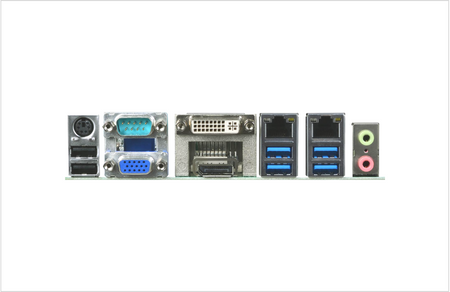

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

1*RS-232/422/485(RS-232 w/power) (DB-9)

USB

4*USB 3.0, 2*USB 2.0

PS/2

1*PS/2

顯示

1*VGA,1*DVI-I (DVI-D signal),1*DP++

音源

1*Line-out, 1*Mic-in, 1*Line-in(opt., MOQ required)

內部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/power)(2.54mm pitch),8*RS-232

USB

4*USB 2.0

音效

1*Front Aduio, 1*S/PDIF

DIO

1*8-bit DIO

SATA

4*SATA 3.0 (up to 6Gb/s), 1*mSATA (co-lay with SATA_4)

擴展槽

6*PCI， 1*PCIex16

顯示

1*VGA：resolution up to 1920x1200 @ 60Hz 1*DP++：resolution up to 4096x2304 @ 60Hz 1*DVI-I (DVI-D signal)：resolution up to 1920x1200 @ 60Hz 1*LVD Sdual channel：resolution up to 1920x1200 @60Hz

音頻

Realtek ALC888S-VD2-GR

溫度

工作溫度：0 to 60°C, 存儲溫度：-30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

濕度

工作濕度:5 to 90% RH， 存儲濕度:5 to 90% RH

尺寸

305mm (12")*244mm (9.6")
