型號

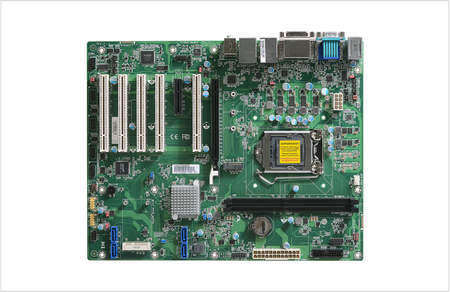

EB-630-H110

處理器

6/7th Generation Intel® Core? /Pentium®/Celeron®LGA 1151 Socket Processors with TDP up to 95W

系統芯片組

Intel® H110 Chipset

系統內存

2*288-pin UDIMM up to 32GB Dual Channel DDR4 up to 2666MHz Core? i5/i7 only support non-ECC

BIOS

Insyde SPI 128Mbit

以太網絡

1*Intel®I219V PCIe (10/100/1000Mbps) 1*Intel®I211AT PCIe (10/100/1000Mbps)

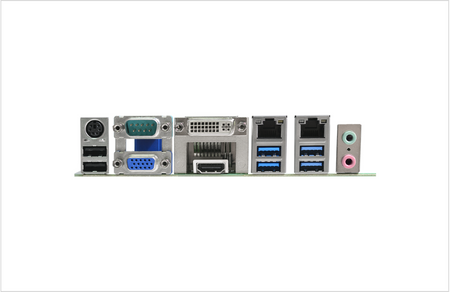

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

1*RS-232/422/485 (RS-232 w/power) (DB-9)

USB

4*USB 3.1 gen1,2*USB 2.0

PS/2

1*PS/2

顯示

1*VGA 1*DVI-I (DVI-D signal) 1*HDMI

音源

1*Line-out,1*Mic-in,1*Line-in (opt., MOQ required)

內部I/O接口

串行端口

1*RS-232/422/485 (RS-232w/power)(2.54mm pitch) 4*RS-232 (2.54mm pitch)

USB

4*USB 2.0 (2.54mm pitch) or up to 2*Vertical USB 2.0 (type A)(opt., MOQ required)

音效

1*Front Aduio, 1*S/PDIF

DIO

1*8-bit DIO

SATA

4*SATA 3.0 (up to 6Gb/s)

擴展槽

1*PCIe x16 (Gen 3) 1*PCIe x4 (Gen 2), 5*PCI， 1*M.2 2242/2260/2280 M key,(PCIe Gen3 x 4 NVMe, share with PCIe x4 slot) 1*mSATA (Share with SATA connector)

顯示

VGA: resolution up to 1920x1200 @ 60Hz DVI-I: resolution up to 1920x1200 @ 60Hz HDMI1.4b: resolution up to 4096x2160 @ 24Hz

音頻

Realtek ALC888S-VD2-GR

溫度

工作溫度: -5 to 65°C, 存儲溫度：-30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

濕度

工作濕度：5 to 90% RH, 存儲濕度：5 to 90% RH

尺寸

305mm (12")*244mm (9.6")
