型號

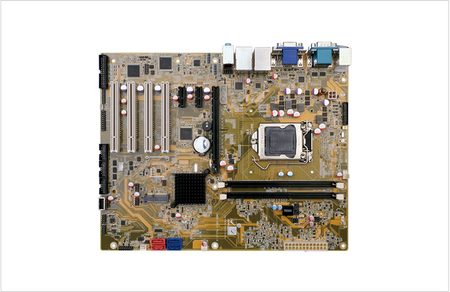

EB-642-H81

處理器

4th Generation Intel® Core?i7/i5/i3,Pentium® or Celeron® processor,LGA 1150

系統芯片組

Intel® H81 Chipset

系統內存

2*240-pin DIMMs up to 16GB, Dual Channel 1600/1333MHZ DDR3 SDRAM ECC and non-ECC unbuffered DIMMs

BIOS

UEFI BIOS

以太網絡

2*LAN: LAN 1:Intel®I217-LM with Intel®AMT9.0 support LAN 2:Intel®I211-AT PCIe Controller

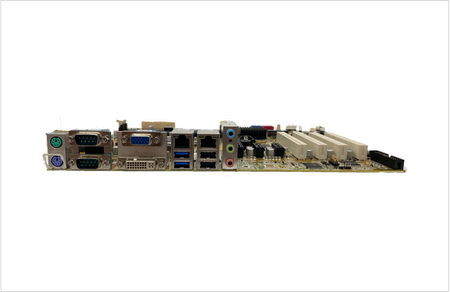

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

2*RS-232

USB

2*USB 3.0,2*USB 2.0

PS/2

1*PS/2

顯示

1*DVI-D,1*VGA,1*iDP

音源

1*Line-out,1*Mic-in,1*Line-in

內部I/O接口

串行端口

3*RS-232,1*RS422/485

USB

4*USB 2.0,1*Vertical USB 2.0

并口

1*LPT

DIO

1*8-bit DIO

SATA

4 * SATA :2 X 6Gb/s (SATA1, SATA2)(AHCI supported, no RAID) (Blue)2 X 3Gb/s (SATA3, SATA4) (Red) 1 * mSATA :share with SATA4

擴展槽

1*PCIe x16, 2*PCIe x1, 4*PCI 1*PCIe mini Card Slot: Full-size slot(support mSATA)

顯示

1*DVI-D:resolution up to 2560*1600 @ 60Hz 1*VGA:resolution up to 1920x1200 @ 60Hz, 1*iDP:interface for HDMI,LVDS,VGA, DVI,DP(up to 3840*2160@60Hz)

音頻

Realtek ALC662

溫度

工作溫度：-20 to 60°C, 存儲溫度：-30 to 70°C

濕度

5 to 95%,無冷凝

尺寸

305mm (12")*244mm (9.6")
