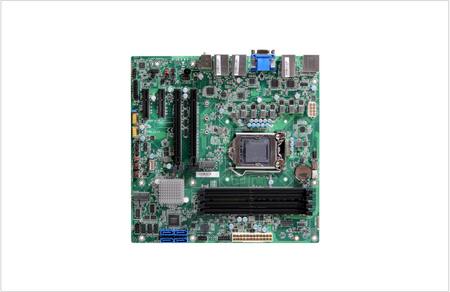

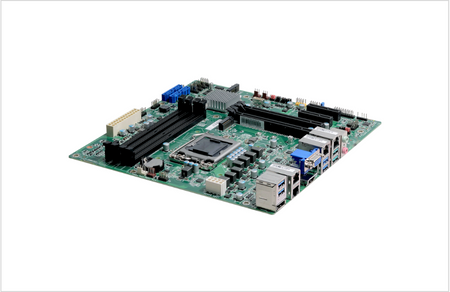

Part Number

EB-310-Q470

處理器

10th Generation Intel® LGA 1200 Socket Processors,TDP support up to 125W

芯片組

Intel® Q470E Chipset

內存

4*288-pin DIMM up to 128GB,Dual Channel DDR4 2400/2666/2933 MHz

BIOS

Insyde SPI 128Mbit

以太網絡

1*Intel® i219LM PCIe (10/100/1000Mbps)

1*Intel® i211AT PCIe (10/100/1000Mbps)

2*Intel® i211AT PCIe (10/100/1000Mbps)

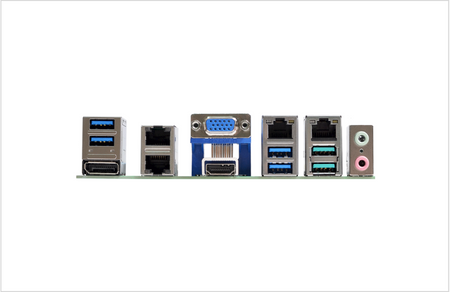

背部I/O接口

以太網絡

4/2*GbE (RJ-45)

USB

2*USB 3.2 Gen 2, 4*USB 3.2 Gen 1

顯示

1*DP++, 1*HDMI, 1*VGA

AUDIO

1*Line-out, 1*Line-in, 1*Mic-in

內部I/O接口

串行端口

2*RS-232/422/485(RS-232 w/power)(2.54mm pitch), 2*RS-232

USB

2*USB 3.2 Gen 2 4*USB 2.0(2.54mm pitch)(colay vertical Type A, MOQ required)

音效

1*S/PDIF, 1*Front Audio Heade

SATA

4*SATA 3.0 (up to 6Gb/s), RAID 0/1/5/10

PS/2

1*PS/2 (2.54mm pitch)

DIO

1*16-bit DIO

擴展接口

2*PCIe x16 (Gen 3)(1*16 signals or 2*8 signals) 2*PCIe x4 (Gen 3) 1*M.2 2230 E key(PCIe/USB 2.0/Intel CNVi support) 1*M.2 2242/2260/2280 M key(PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support)

顯示

1*DP++:resolution up to 4096x2106 @ 60Hz

1*HDMI 1.4b:resolution up to 4096x2160 @ 24Hz

1*VGA:resolution up to 1920x1200 @ 60Hz

音頻

Realtek ALC888

溫度

工作溫度:-5 to 65°C,存儲溫度:-30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

濕度

工作濕度: 5 to 90% RH

尺寸

244mm (9.6")*244mm (9.6")
