Part Number

EB-330-H420

處理器

10th Generation Intel® LGA 1200 socket Processors,TDP support up to 125W

芯片組

Intel® H420E Chipset

內存

2*288-pin Non-ECC UDIMM up to 64GB,Dual Channel DDR4 2400/2666/2933MHz

BIOS

AMI SPI 256Mbit

以太網絡

1*Intel® I211AT PCIe (10/100/1000Mbps),

1*Intel® I219LM PHY (10/100/1000Mbps)

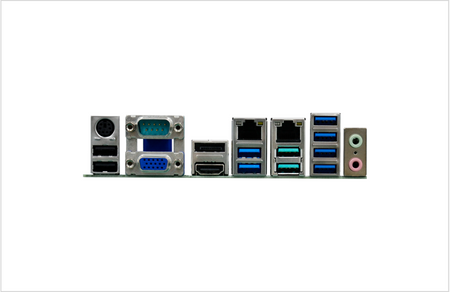

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

1*RS-232/422/485(RS-232 w/power)(DB-9)

USB

2*USB 3.2 Gen 1,2*USB 2.0

顯示

1*VGA,1*DP++,1*HDMI

PS/2

1*PS/2(mini-DIN-6)

AUDIO

1*Line-out,1*Mic-in,1*Line-in(opt.,MOQ required)

內部I/O接口

串行端口

5*RS-232 (2.54mm pitch)(Up to 9*RS232,MOQ required)

USB

2*USB 3.2 Gen 1,2*USB 2.0(2.54mm pitch colay vertical Type A,opt.,MOQ required)

音效

1*Front Audio Header,1*S/PDIF

SATA

4*SATA 3.0 (up to 6Gb/s)

DIO

1*16-bit DIO

擴展接口

1*PCIe x16（Gen3),1*PCIe x4(Gen 3),2*PCI

顯示

1*VGA：resolution up to 1920x1200 @ 60Hz

1*HDMI：resolution up to 4096x2160@ 24Hz

1*DP++：resolution up to 4096x2160 @ 60Hz

音頻

Realtek ALC888

溫度

工作溫度: 0 to 60°C,存儲溫度: -30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

濕度

工作濕度: 5 to 95% RH,存儲濕度: 5 to 95% RH

尺寸

244mm (9.6")*244mm (9.6")
