Part Number

EB-350-Q370

處理器

8/9th Generation Intel® Core?/Pentium®/Celeron®LGA 1151 socket Processors

芯片組

Intel® Q370 Chipset

內存

4*288-pin DIMM up to 128GB, Dual Channel DDR4 2400/2666MHz(non ECC support)

BIOS

Insyde SPI 128Mbit

以太網絡

1*Intel® I211AT PCIe (10/100/1000Mbps)

1*Intel® I219LM PCIe(10/100/1000Mbps) with iAMT12.0(only Corei7/i5 supports iAMT)

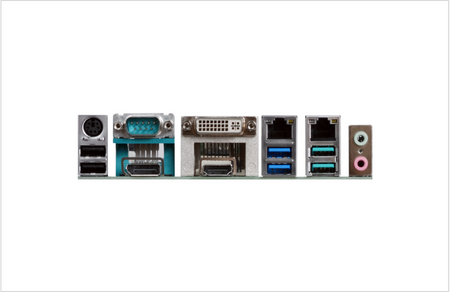

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

2*USB 3.1 Gen 2,2*USB 3.1 Gen 1,2*USB 2.0

USB

1*RS-232/422/485(RS-232 w/power)(DB-9)

顯示

1*DVI-I(DVI-D signal)1*DP++,1*HDMI

AUDIO

1*Line-out,1*Mic-in,1*Line-in(opt.,MOQ required)

內部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/power)(2.54mm pitch),2*RS-232

USB

2*USB 3.1 Gen 2,4*USB 2.0(2.54mm pitch)(1*USB 2.0 colay vertical Type A)(opt.,MOQ required)

音效

1*Front Audio Header,1*S/PDIF

SATA

6*SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10

DIO

1*8-bit DIO

擴展接口

2*PCIe x16（Gen3)(1*16 signal or 2*8 signals)

2*PCIe x4(Gen 3)

1*M.2 2230 E key(PCIe*1/USB2.0/intel CNVi support)

1*M.2 2242/2260/2280 M key(PCIe Gen3*4NVMe)

顯示

1*HDMI：resolution up to 4096x2160@ 24Hz

1*DP++：resolution up to 4096x2106 @ 60Hz

1*DVI-I(DVI-D signal)：resolution up to 1920x1200 @ 60Hz

音頻

Realtek ALC888

溫度

工作溫度: -5 to 65°C,存儲溫度: 30 to 60°C with RTC Battery;-40 to 85°C without RTC Battery

濕度

工作濕度: 5 to 90% RH,存儲濕度: 5 to 90% RH

尺寸

244mm (9.6")*244mm (9.6")
