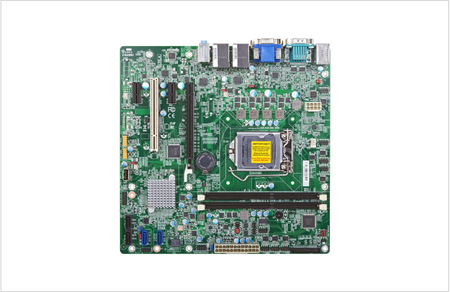

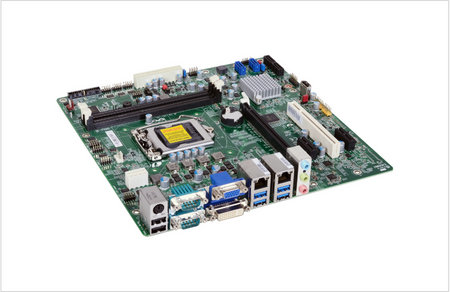

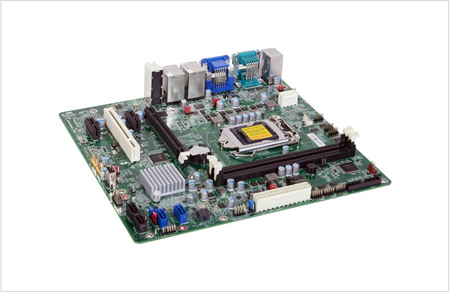

Part Number

EB-336-H81

處理器

4th Generation Intel® Core? processors,LGA 1150 socket

芯片組

Intel® H81 Chipset

內存

2*240-pin DIMM up to 16GB,Dual Channel DDR3 1333/1600MHz

BIOS

AMI SPI 64Mbit

以太網絡

2*Intel® I211 PCIe (10/100/1000Mbps)

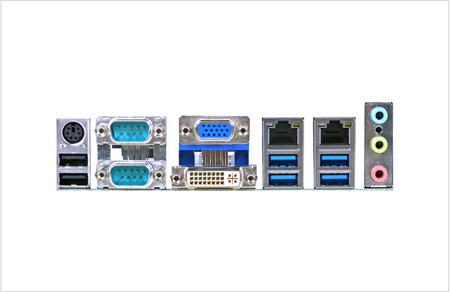

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

2*RS-232(DB-9)

USB

4*USB 3.0,2*USB 2.0

PS/2

1*mini-DIN-6 port for PS/2 mouse/keyboard

顯示

2*VGA/VGA+DVI-D/VGA+DVI-D+1LVDS/2*VGA+1LVDS

AUDIO

1*Line-out,1*Mic-in,1*Line-in

內部I/O接口

串行端口

1*RS232/RS422/485 (RS232 and/or power)，7*RS232

USB

6*USB 2.0 ports,or 4*USB 2.0 ports and 1*vertical USB 2.0/1.1 port*

SATA

2*SATA 3.0 2*SATA 2.0

擴展接口

1*PCIe x16 Gen 3 slot (PCIe 3.0) 2*PCIe x1 Gen 2 slots(PCIe 2.0) 1* PCI slot (PCI 2.3)

顯示

VGA+VGA, VGA+DVI-D, VGA+LVDS, DVI-D+LVDS

resolution up to 1920x1200 @ 60Hz

音頻

Realtek ALC888

溫度

工作溫度: 0 to 60°C,存儲溫度: -20 to 85°C

濕度

工作濕度: 5 to 90% RH,存儲濕度: 5 to 90% RH

尺寸

244mm (9.6")*244mm (9.6")
