組件名稱

規格

處理器

6/7th Generation Intel® Core?/Pentium®/Celeron®LGA 1151 Socket Processors

芯片組

Intel® Q170 Chipset

系統內存

2*260-pin SODIMM up to 32GB,Dual Channel DDR4 1866/2133MHz

BIOS

Insyde SPI 128Mbit

網絡

1*Intel®I210AT PCIe (10/100/1000Mbps) 1*Intel®I219LM PCIe with iAMT11.0 (10/100/1000Mbps)(only Core i7/i5 supports iAMT)

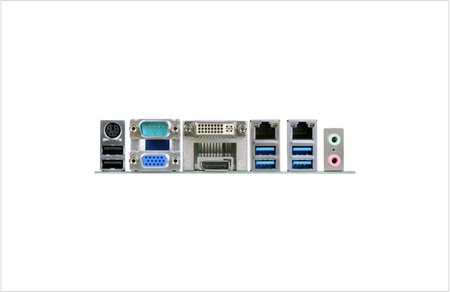

背部I/O接口

以太網絡

2*GbE (RJ-45)

串口

1*RS-232 (DB-9)

USB

4*USB 3.0,2*USB 2.0

PS/2

1*PS/2 (mini-DIN-6)

顯示

1*VGA,1*DVI-I(DVI-D signal),1*DP++

音源

1*Line-in (available upon request),1*Line-out,1*Mic-in

內部I/O接口

串行端口

1*RS-232/422/485 (RS-232 w/power)(2.00mm pitch) 2*RS-232 (2.00mm pitch)

USB

4*USB 2.0 (2.00mm pitch)

音效

1*S/PDIF

SATA

3*SATA 3.0 (up to 6Gb/s) RAID 0/1

DIO

1*8-bit DIO

顯示

1*LVDS LCD Panel Connector, 1*LCD/Inverter Power

擴展槽

1*PCIe x16 (Gen 3) 1*Full-size Mini PCIe(mSATA/PCIe, PCIe by default)

顯示

1*VGA:resolution up to 1920x1200 @ 60Hz 1*DVI-I (DVI-D signal):resolution up to 1920x1200 @ 60Hz 1*DP++:resolution up to 4096x2304 @ 60Hz 1*LVDS:dual channel,resolution up to 1920x1200 @ 60Hz

音頻

Realtek ALC888S-VD2-GR

溫度

工作溫度: 0 to 60°C, 存儲溫度:-40 to 85°C

濕度

工作濕度:5 to 90% RH, 存儲濕度:5 to 90% RH

尺寸

170mm (6.7")*170mm (6.7")
