Part Number

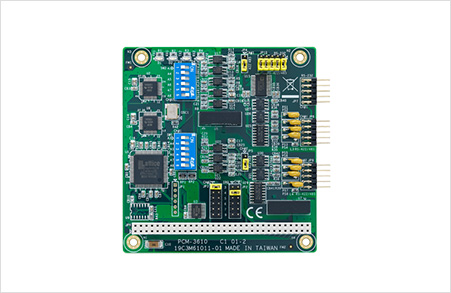

PCM-3610-CE

Environment

Operating Humidity

0 ~ 90 % RH, non-condensing

Storage Temperature

40 ~ 85°C (-40 ~ 185°F)

Operating Temperature

40 ~ 85°C (-40 ~ 185°F)

General

Bus

PC/104

Connectors

2 x DB9-M

Power Consumption

400 mA @ +5 V (typ.)

Certifications

CE, FCC, RoHS

OS Support

Windows 2000/XP/Vista/7 , WinCE 4.2, 5.0

Dimensions

96 x 90 mm (3.775" x 5.550")

Communications

Ports

2

Data Bits

5,6,7,8

Parity

None, even, odd

Speed

50 bps ~ 115.2 kbps

Stop Bits

1,1.5,2

Data Flow Control

Automatic RS-485 data flow control

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

Protection

Surge Protection

1 KV

Isolation Protection

2.5 KV

EFT Protection

1 KV

Software

Bundled Software

ICOM Tools
