Part Number

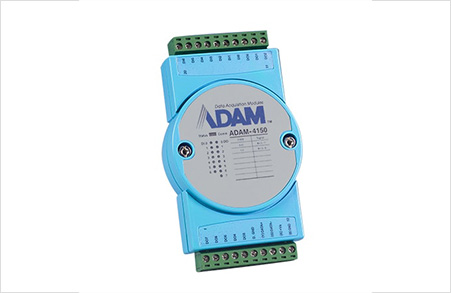

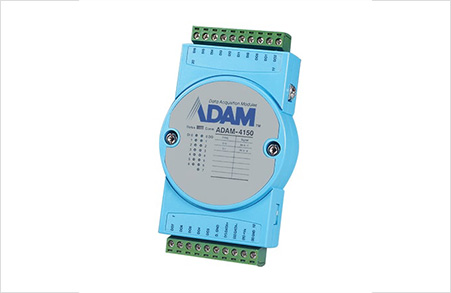

ADAM-4150-B

Display

LED Indicators

Status, Comm, and DIO

Power Supply

Power Requirement

10~48 VDC

Digital I/O

Frequency Input

DI counters (32-bit + 1-bit overflow, 3kHz max.)

General

Watchdog Timer

System (1.6 second) & Communication

Connector

2 x plug-in terminal block (#14~22 AWG)

Temperature (Operating)

-40~85°C (40~185 °F)

Humidity

5 ~ 95% RH

Temperature (Storage)

-40~85°C (40~185 °F)

Interface

RS-485, Micro USB, Passive UHF RFID

Isolation Protection

3,000 VDC

Communication Protocol

ASCII command & Modbus/RTU

Communication Speed

Serial: From 1,200 to 115.2 k

Comm. Distance

Serial: 1.2 km

Data Flow Control

Yes

Digital Input

Channles

7

Input Voltage

Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 3 VDC max. Logic level 1: 10~30 VDC

Digital Output

Channels

8 Open collector to 40V, 1 A max. load Support 1 kHz pulse output

Power Dissipation

1W load max
