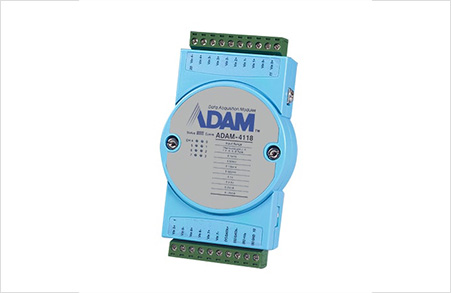

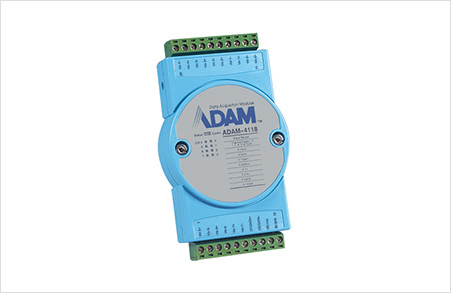

ADAM-4118
8路可獨立配置的差分通道
寬溫運行
操作溫度更寬：-40-+85°C
高抗噪性：1kV浪涌保護電壓輸入，3KV EFT及8KV ESD保護
抗干擾性強：電源輸入端1KV的浪涌保護，3KV EFT,8KV ESD保護
寬電源輸入范圍：+10~ +48VDC
輸入范圍：+10~+48 VDC
易于監測狀態的LED指示燈
支持50HZ/60HZ自動調整濾波參數
支持濾波器自動調諧或?yàn)V波器輸出50Hz/60Hz
增加LED地址指示功能，方便現場快速應用
在線固件升級
在線更新固件版本，隨時增加新功能
規格

Part Number

ADAM-4118-AE

Display

LED Indicators

Status, Comm, and Ch. enable

Power Supply

Power Requirement

10~48 VDC

Analog Input

Channels

8 differential

Voltage Range

15 mV ±50 mV ±100 mV ±500 mV ±1 V ±2.5 V

Current Input

±20 mA 4~20 mA

Direct Sensor Input

J, K, T, E, R, S, B Thermocouple

Burn-out Detection

Yes (4~20 mA & all T/C)

Channel Independent Configuration

Yes

Sampling Rates

10/100 samples/second (total)

Resolution

16-bit

Input Impedance

Voltage: 20 MOhm Current: 120 Ohm

Span Drift

±25 ppm/°C

Zero Drift

±6 µV/°C

CMR @ 50/60 Hz

92 dB

NMR @ 50/60 Hz

60 dB

High Common Mode

200 VDC

General

Watchdog Timer

System (1.6 second) & Communication

Connector

2 x plug-in terminal block (#14~22 AWG)

Temperature (Operating)

-40~85°C (40~185 °F)

Humidity

5~95 %RH

Temperature (Storage)

-40~85°C (40~185 °F)

Interface

RS-485

Isolation Protection

3000 VDC

Communication Protocol

ASCII command & Modbus/RTU

Communication Speed

Serial: From 1,200 to 115.2 k

Comm. Distance

Serial: 1.2 km

Data Flow Control

Yes
