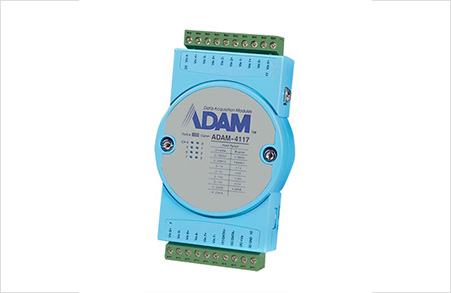

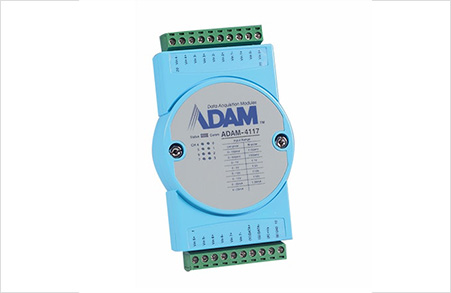

ADAM-4117
8路不同且可獨立配置的差分通道
寬溫運行
高抗噪性：1kV浪涌保護電壓輸入，3KV EFT及8KV ESD保護
寬電源輸入范圍：+10~ +48VDC
易于監測狀態的LED指示燈
支持2000VDC HI共模電壓
支持單極性和雙極性輸入
支持+/- 15V輸入范圍
支持濾波器自動調諧或?yàn)V波器輸出50Hz/60Hz
在線固件升級
規格

Part Number

ADAM-4117-B

Display

LED Indicators

Status, Comm, and Ch. enable

Power Supply

Power Requirement

10~48 VDC

Analog Input

Channels

8 differential

Voltage Range

0~150 mV 0~500 mV 0~1V 0~5 V 0~10 V ±150 mV ±500 mV ±1 V ±5 V ±10 V ±15 V

Current Input

±20 mA 0~ 20 mA 4~20 mA

Burn-out Detection

Yes (4~20 mA)

Channel Independent Configuration

Yes

Sampling Rates

10/100 samples/second (total)

Resolution

16-bit

Input Impedance

Voltage: 800 kOhm Current: 120 Ohm

Span Drift

±25 ppm/°C

Zero Drift

± 6 µV/° C

CMR @ 50/60 Hz

92 dB

NMR @ 50/60 Hz

60 dB

High Common Mode

200 VDC

General

Watchdog Timer

System (1.6 second) & Communication

Connector

2 x plug-in terminal block (#14~22 AWG)

Temperature (Operating)

-40~85°C (40~185 °F)

Humidity

5 ~ 95% RH

Temperature (Storage)

-40~85°C (40~185 °F)

Interface

RS-485, Micro USB, Passive UHF RFID

Isolation Protection

3000 VDC

Communication Protocol

ASCII command & Modbus/RTU

Communication Speed

Serial: From 1,200 to 115.2 k

Comm. Distance

Serial: 1.2 km

Data Flow Control

Yes
