Let me take you into the world of industrial automation
中文版   |   English

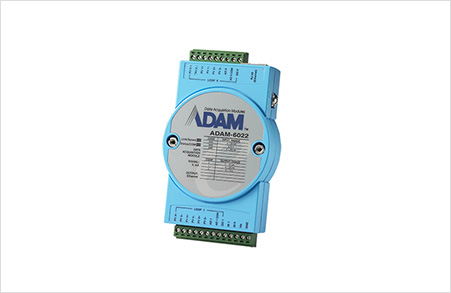

ADAM-6022
一次設計完成的2回環PID控制算法
1個PID回環包括3次模擬輸入/1次模擬輸出/1次
數字輸入/1次數字警告輸出
支持多種模擬輸入/輸出范圍：0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA
支持制熱/冷卻（直行/倒退）行為模式
支持回環開閉（PID禁止/啟用）以及模擬輸出手動控制模式
內置看門狗計時器
規格

Display

LED Indicators

Status, Comm, Link, Speed

Power Supply

Power Requirement

10~30 VDC

Analog Input

Channel Independent Configuration

Yes

Sampling Rates

10 samples/second

Resolution

16-bit

Channels

6 differential

Voltage Range

±10 V

Current Input

0~20 mA 4~20 mA

Input Impedance

20 MOhm

Span Drift

±25 ppm/°C

Zero Drift

±6 µV/°C

Analog Output

Channels

2

Voltage Range

0~10 V

Current Output

0~20 mA 4~20 mA

General

Watchdog Timer

System (1.6 second) & Communication (programmable)

Temperature (Operating)

-10~70 °C (14~158 °F)

Humidity

20~95 %RH

Temperature (Storage)

-20~80 °C (-4~176 °F)

Interface

10/100Base-T(X)

Peer-to-Peer

No

GCL

No

Isolation Protection

2000 VDC

Communication Protocol

Modbus/TCP, TCP/IP, UDP, and HTTP

Communication Speed

Ethernet: 10/100Mbps

Comm. Distance

Ethernet: 100 m

Connector

1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power)

Digital Input

Input Voltage

Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC

Channels

2

Digital Output

Channels

2, open collector to 30V, 100 mA max. load

Power Dissipation

300 mW for each module
