Part Number

HPC-7484-12ZX

HPC-7484-70ZX

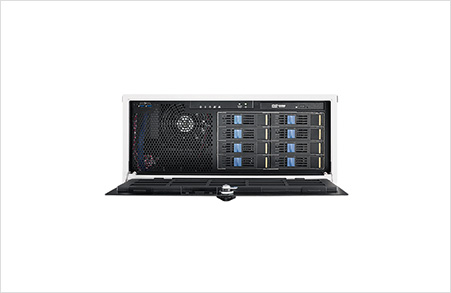

Disk Drive Bay

Slim ODD

1

1

2.5” External

1

1

Hot-swap

8 (2.5"/3.5" SASIII/SATAIII HDD)

8 (2.5"/3.5" SASIII/SATAIII HDD)

Cooling

Fan

2 (12cm / 150CFM)

2 (12cm / 150CFM)

Air Filter

Yes

Yes

Front I/O Interface

USB3.0

2

2

Miscellaneous

LED Indicators

Power, HDD, LAN1, LAN2, System Information

Power, HDD, LAN1, LAN2, System Information

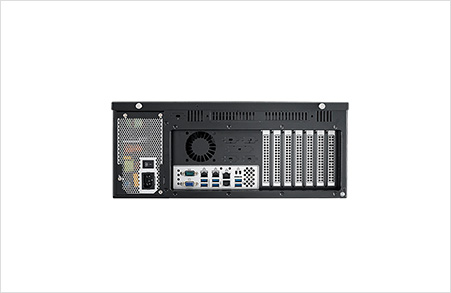

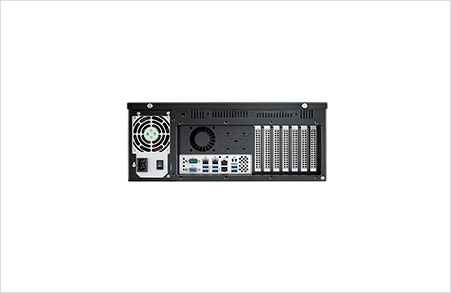

Rear Panel

Five 9-pin D-Sub & one 68-pin SCSI openings

Five 9-pin D-Sub & one 68-pin SCSI openings

Environment

Operating Temperature

0 ~ 40° C (32 ~ 104° F)

0 ~ 40° C (32 ~ 104° F)

Non-operating Temperature

-40 ~ 70 °C (-40 ~ 156 °F)

-40 ~ 70 °C (-40 ~ 156 °F)

Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 60° C, non-condensing

10 ~ 95% @ 60° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Physical Characteristics

Dimensions (W x H x D)

426 x 177 x 630mm (16.7" x 7.0" x 24.8")

426 x 177 x 630mm (16.7" x 7.0" x 24.8")

Weight

19.0 kg (41.8 lb)

19.0 kg (41.8 lb)

Power Supply

Power Supply

1200W (Single)

700W (Single)
