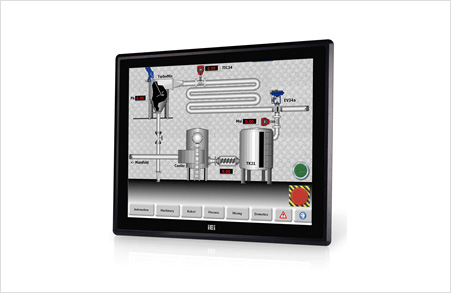

DM-F19A
Robust IP65 aluminum front bezel
Aesthetic ultra-thin bezel for seamless panel mount installation
Wide range 9V~36V DC input
DVI / DisplayPort / VGA flexible video input solution
Projected capacitive multi-touch and resistive single touch options
Wide temperature support
規(guī)格

Spec Item

Description

Display

Backlight MTBF(hrs)

50000

Brightness(cd/m2)

350

Contrast Ratio

1000:1

LCD Size

19”(4:3)

Max Resolution

1280 (W) x 1024 (H)

Environment

Humidity

10% to 95% (non-condensing)

IP Level

IP 65 compliant front panel

Operating Temperature

-20°C ~ 60°C

Storage Temperature

-20°C ~ 70°C

I/O Interface

I/O Ports and Switches

1 x VGA (DB-15)

1 x DVI(F19A only)

1 x HDMI(F17A only)

1 x DisplayPort1.1

1 x USB 2.0 (touch)

1 x RS-232 (reserved for resistive touch ATO)

1 x Lockable 12V DC jack

1 x 9V-36V terminal block

LCD

LCD Color

16.7M

Pixel Pitch (mm)

0.294 x 0.294

Viewing Angle (H-V)

170° / 160°

Physical Characteristics

Cutout Dimensions

430 x 355

Dimensions (LxWxH) (mm)

372.4 x 447.4 x 49.57

Power

Power adapter

9V~36V DC

Touch

Touch Controller

5-wire resistive single touch window/ Penmount 6000

Touch Screen

2-point projected capacitive touch window/ EETI EXC7200

Weight

Weight

5.4 /8.4
