Let me take you into the world of industrial automation
中文版   |   English

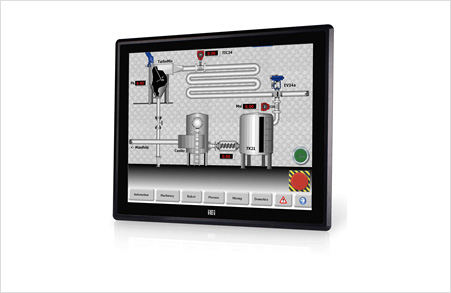

DM-F12A
Robust IP65 aluminum front bezel
Aesthetic ultra-thin bezel for seamless panel mount installation
DC input
DVI / VGA flexible video input solution
Resistive single touch
Wide temperature support
規(guī)格

Spec Item

Description

Display

Backlight MTBF(hrs)

50000

Brightness(cd/m2)

600

Contrast Ratio

700:1

LCD Size

12”(4:3)

Max Resolution

1024 (W) x 768 (H)

Environment

Humidity

10% to 95% (non-condensing)

IP Level

IP 65 compliant front panel

Operating Temperature

-20°C ~ 60°C

Storage Temperature

-20°C ~ 70°C

I/O Interface

I/O Ports and Switches

1 x VGA (DB-15)

1 x HDMI

1 x DisplayPort1.1

1 x USB 2.0 (touch)

1 x RS-232 (reserved for resistive touch ATO)

1 x Lockable 9V-36V DC jack

1 x 9V-36V terminal block

LCD

LCD Color

16.2M

Pixel Pitch (mm)

0.24 x 0.24

Viewing Angle (H-V)

160° /140°

Physical Characteristics

Cutout Dimensions

244.8 x 304.8

Dimensions (LxWxH) (mm)

262.2 x 322.2 x 40.5

Power

Power adapter

9V~36V DC

Touch

Touch Controller

5-wire resistive single touch window/ Penmount 6000

Touch Screen

2-point projected capacitive touch window/ EETI EXC7200

Weight

Weight

2.7 / 4.9
