Spec Item

Description

Communication

Bluetooth

Bluetooth V4.1

Wi-Fi

IEEE 802.11 a/b/g/n/ac 2T2R module

Display

Backlight MTBF(hrs)

30000 (LED backlight) / 50000 (LED backlight)

Brightness(cd/m2)

250/350

Contrast Ratio

1000:1

LCD Size

18.5” (16:9)

Max Resolution

1366 (W) x 768 (H) / 1920 (W) x 1080 (H)

Environment

Humidity

10% to 95% (non-condensing)

IP Level

IP65 compliant front panel

Operating Shock

Operating Shock: 5G peak acceleration (11ms duration)

Non-Operating Shock: 15G peak acceleration (11ms duration)

Operating Temperature

0°C~40°C

Operating Vibration

1G

Storage Temperature

-20°C~60°C

I/O Interface

Audio

2 x 2W speaker

Side:1 x Audio out, 1 x Mic in

Ethernet

Rear:1 x GbE LAN port

Bottom:1 x GbE LAN port

Other Features

Ambient Light Sensor

Ambient light sensor for panel brightness adjustment

Camera

2-megapixel CMOS front-facing camera with auto-focus and digital microphone

LED Light Bar

RFID indicator LED

OSD Function

1 x LCD on/off

1 x Brightness up

1 x Brightness down

1 x Volume up

1 x Volume down

1 x Touch lock button for cleaning

Combinations:

1 x Auto-dimming on/off

Physical Characteristics

Construction

ABS+PC plastic with anti-bacterial material

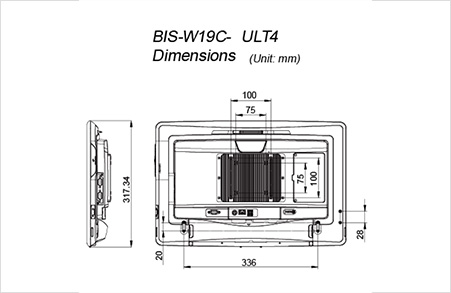

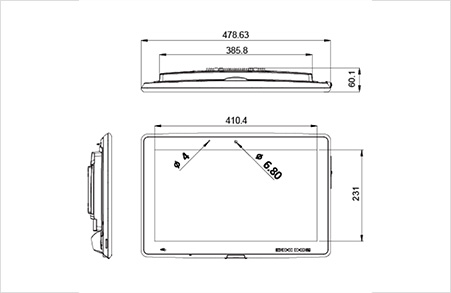

Dimensions (LxWxH) (mm)

478.6 x 317.3 x 60.1 mm

Mounting

Wall, Stand and Arm VESA 100/75

Net Weight

6.5 kg

Power

Input

1 x 12~28V DC Jack

Power adapter

120W medical power adapter: Input: 100V~240V AC, Output: 19V DC

System

Cooling method / System Fan

Fan-less

CPU

Intel® Kabylake ULT platform Core? i5-7300U and Celeron® 3865U

HDD

1 x 2.5” SATA 6Gb/s HDD bay

Memory Max.

32G

On-board Memory

Two 260-pin 2133/1866 MHz dual-channel 4G DDR4 non-ECC unbuffered SO-DIMMs

Touch

Touch Screen

Projected capacitive type with USB interface

I/O Interface

I/O Interface

1 x DC Input Jack

2 x HDMI(1 x HDMI Input (side); 1 x HDMI Out (Bottom))

2 x LAN(1 x rear,1 x bottom)

1 x Line out

2 x Mic(1 x digital microphone(front); 1 x side)

1 x RS-232(rear 1.5kV isolation)

2 x USB 2.0(2 x side)

4 x USB 3.0(2 x rear,2 x bottom)
