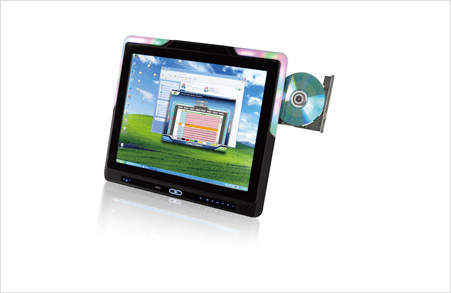

AFL2-17A-H61
Programmable colorful LED light bar
Intel? Core? i5/ i3 and Pentium? processor
Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) preinstalled with 4GB (2GB x 2)
Projected capacitive touchscreen and 5-wire resistive type touchscreen supported
Wi-Fi 802.11b/g/n
EM or Mifare RFID reader
Built-in 2-megapixel webcam with AF, AE and AWB capabilities
Built-in two 2W speakers and microphone
IP 64 compliant front panel
Auto dimming control
Light fanless design
Type K thermocouple temperature sensor
Wide range 9~36 VDC input
規(guī)格

Spec Item

Description

Communication

Wi-Fi

IEEE 802.11b/g/n

Dimensions

Dimensions

418 x 378 x 65

Environment

Operating Temperature

-20°C~50°C

Storage Temperature

-20°C~60°C

I/O Interface

I/O Ports and Switches

2 x RS-232 (DB-9 connector)

1 x RS-422/485 (DB-9 connector)

2 x GbE LAN (one on the bottom, one on the left)

2 x USB 3.0

3 x USB 2.0 (two on the bottom, one on the left)

RAM

Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2)

LCD

Backlight MTBF

50000 (LED backlight panel)

Brightness (cd/m2)

350

Contrast Ratio

1000:1

LCD Color

16.7M

Pixel Pitch (mm)

0.264 (H) x 0.264 (V)

Resolution

1280 x 1024

Size

17"(4:3)

Viewing Angle (H-V)

170º/160º

Other Features

Camera

2 M pixels with low light function

System Cooling

Fanless

Power

Power Requirement

9~36 VDC

Storage

Storage

2.5" SATA 3Gb/s SSD bay

System

Chipset

Intel® ICH61

CPU

2nd/3rd Generation Intel® Core? i7/i5/i3 and Pentium® processors

Touch

Touch Controller

PenMount DMC9000 / EETI EXC7200 & EXC5404

Touch Screen

5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface

Weight

Weight

6.9Kg

I/O Interface

I/O Interface

1 x RS-422/485((DB-9))

1 x Mini USB 2.0(on front panel)

1 x MicroSD card slot(on front panel)

2 x USB 3.0

2 x LAN(GbE LAN (one on the bottom, one on the left))

2 x RS-232((DB-9))

3 x USB 2.0((two on the bottom, one on the left))

1 x Line out
