Spec Item

Description

Communication

Bluetooth

Bluetooth v4.0 (M.2 slot)

Wireless

IEEE 802.11a/b/g/n/ac

Environment

Humidity

10% to 95% (non-condensing)

IP Level

IP 64 compliant front panel

Operating Temperature

-20°C~50°C

Safety & EMC

CE / FCC

Storage Temperature

-20°C~60°C

I/O Interface

Audio

AMP 3W + 3W (internal speaker)

Audio Codec

ALC892

Ethernet

2 x Intel® I211-AT PCIe GbE controller

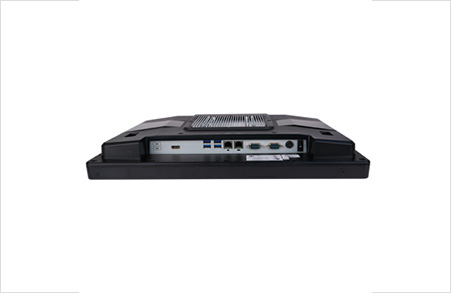

I/O Ports and Switches

1 x RS-232 by DB-9 (RI/5V/12V)

1 x RS-232/422/485 by DB-9 (RI/5V/12V)

2 x GbE LAN

4 x USB 3.0

1 x HDMI output

1 x Power switch

1 x Reset button

1 x AT/ATX switch

1 x 9-30V lockable power jack

RAM

Two 260-pin DDR4 SO-DIMMs (system max.32GB)

LCD

Backlight MTBF

30,000 (LED backlight panel)

Brightness (cd/m2)

250

Contrast Ratio

1000:1

LCD Color

262K

Pixel Pitch (mm)

0.240 (H) x 0.240 (V)

Resolution

1366 x 768 (16:9)

Size

18.5""

Viewing Angle (H-V)

170º/160º

Other Features

Camera

2-megapixel with low light function

Microphone

digital microphone

OSD Function

Software OSD

System Cooling

Fanless

Physical Characteristics

Color

Black C

Construction Front Panel

PC + ABS Plastic

Cutout Dimensions

443 x 261 (W x H) (mm)

Dimensions (LxWxH) (mm)

470 x 290 x 70

Mounting

Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm

Net Weight

7.3Kg

Power

Power consumption

12V@7.1A

Power Requirement

9 V ~ 30 VDC

System

Cooling method / System Fan

Fanless

CPU

Intel® Core? i5 and Celeron® ULT Processor

Storage

1 x 2.5” SATA 3Gb/s HDD bay

1 x M.2 M key PCIe storage (2280 or 22110)

1 x mSATA slot

Touch

Touch Controller

EETI EXC3180

Touch Screen

Projected capacitive type with USB interface

Weight

Weight

7.3/10Kg

I/O Interface

I/O Interface

1 x HDMI(output)

4 x USB 3.0

1 x Power In(9-30V lockable power jack)

1 x RS-232(DB-9 (RI/5V/12V))

2 x LAN(Gbe)

1 x Reset Button

1 x Power Switch

1 x AT/ATX switch

1 x RS-422/485(DB-9 (RI/5V/12V))
