Spec Item

Description

System

Storage

1 x 2.5” HDD bay

1 x M.2 (B key 2242 with USB 2.0 and SATA signal)

On-board Memory

1 x 260-pin 2133/1867 MHz single-channel 4GB DDR4 SO-DIMMs

Expansion Slots

Expansion Slots

1 x M.2 (B key 2242 with USB 2.0 and SATA signal)

Environment

Humidity

10% ~ 95% (non-condensing)

Display

Max Resolution

1024(W) x 768(H)

Power

Power consumption

12 V @ 5 A; 36 V @ 1.6 A

Display

LCD Size

12.1”

Backlight MTBF(hrs)

16.2M

Environment

Operating Temperature

-20ºC ~ 60ºC

torage Temperature

-20ºC ~ 70ºC

Physical Characteristics

Dimensions (LxWxH) (mm)

279x316x67

Display

Brightness(cd/m2)

600

System

CPU

6th generation Intel® Core? i5 and Celeron® ULT processor

Display

Contrast Ratio

29.1673611111

Communication

Wi-Fi

802.11 a/b/g/n/ac

Physical Characteristics

Construction

Aluminum die-casting

Color

Black

Communication

Bluetooth

Bluetooth v4.0

Environment

Safety & EMC

CE & FCC

System

Cooling method / System Fan

Fanless

I/O Interface

Ethernet

LAN1: PCIe GbE by Intel® I211 controller

LAN2: PCIe GbE by Intel® I211 controller

I/O Ports

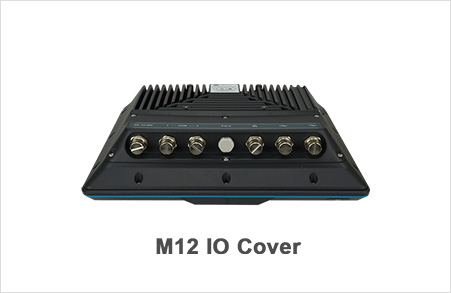

M12 Type:

1 x 8-pin M12 connector for RS-232

1 x 8-pin M12 connector for RS-232/422/485

1 x 8-pin M12 connector for GbE LAN

2 x 8-pin M12 connector for two USB 2.0

1 x 5-pin M12 connector for DC jack (12V~36V DC)

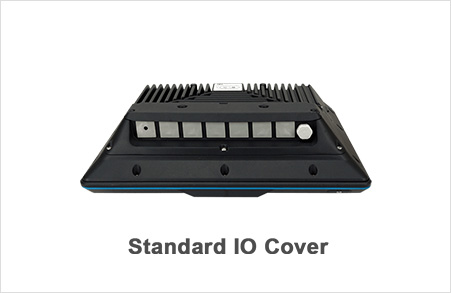

Standard Type:

1 x DC jack (12V-36V DC)

1 x DC-in terminal block

(12V-36V DC)

1 x HDMI

1 x VGA

1 x RS-232 (COM1 RJ-45)

1 x RS-232/422/485 (COM2 RJ-45)

2 x LAN

2 x USB 2.0

2 x USB 3.0

Power

Input

Power 1: 12V ~ 36V (terminal block)

Power 2: 12V ~ 36V (DC jack)

System

Chipset

SoC

Physical Characteristics

Net Weight

standard: 5.02kg M12: 4.95kg

Environment

IP Level

standard: 5-side IP66 (IP65 I/O panel)

M12: 6-side IP66

Physical Characteristics

Mounting

VESA 100x100
