Spec Item

Description

Form factor

SBC Form Factor

*CPU:

Intel® Core? i7-6822EQ 2GHz

*Chipset:

Intel® HM170

*Memory:

2 x 260-pin DDR4 SO-DIMM preinstalled one 4 GB

(Maximum memory size supported by the system is 32 GB)

*Safety & EMC:

CE/FCC class B part18,

IEC60601-1 v3.1, IEC60601-1-2 V4.0, IEC62304,

ISO 14971

*Power:

DC Jack : 12V~28V DC(Input)

19V@4.4A(Consumption)

I/O Interface

I/O Openings

Reserved IO window for PCIe Mini card expasion

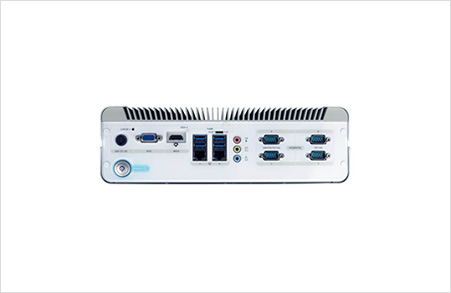

I/O Ports

*Display:

1 x VGA,

1 x HDMI2.0,

1 x iDP(optional)

*Audio:

1 x Line-out,

1 x Line-in,

1 x Mic-in

*Network:

2 x RJ-45 PCIe GbE by Intel® I211 controller

1 x 802.11a/b/g/n/ac 2T/2R (optional)

*Others:

2 x RS-232 (DB-9, with 2.5kV isolation)

2 x RS-232/422/485 (DB-9, with 2.5kV isolation)

4 x USB 3.0

2 x USB 2.0

Expansion Slots

Expansion Slots

1 x PCIe x 16

1 x Half-size PCIe mini

1 x Full-size PCIe mini (support mSATA, colay with SATA)

1 x M.2 (A & E key)

System

Cooling method / System Fan

Fanless

Drive Bays

HDD: 1 x 2.5" SATA 6Gb/s HDD/SSD Bay

Physical Characteristics

Construction

Extruded aluminum alloys

Color

Color

Silver + Greyish blue

Dimensions

Dimensions

294 x 209 x 90.2

Environment

Operating Temperature

-20°C ~ 70°C with air flow (SSD)

Humidity

10%~90% non-condensing
