規格

描述

規格

SBC 規格

CPU:

Intel® Atom? x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)

Chipset:

SoC

System Memory:

1x 204-pin DDR3L SO-DIMM slot (system max. 8 GB)

Power:

Input : 2-pin terminal block: 12 V DC

Consumption: 12V @ 1A (Intel® Atom? x5-E3930 CPU with 2GB 1600 MHz DDR3L memory)

Reliability:

Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27

Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)

Safety/EMC: CE/FCC

I/O 接口

I/O 端口

USB: 2 x USB 3.0

Ethernet:2 x RJ-45

PCIe GbE by Intel® I211 controller

COM Port:2 x RS-232/422/485

Display:1 x VGA

擴展插槽

擴展插槽

M.2:

1 x M.2 2230 (A key, PCIe by 1, USB2.0)

PCIe Mini:

1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)

系統

散熱方式 / 系統風扇

Fanless

驅動器托架

1 x 2.5＂ SATA 6Gb/s HDD/SSD bay (ITG-100-AL-E1 & ITG-100-AL-E1/2GB support)

指示器和按鈕

按鈕

1 x Power Button

1 x Reset Button

1 x AT/ATX Switch

指示燈

1 x LED for HDD (Yellow)

1 x LED for Power (Green)

物理特性

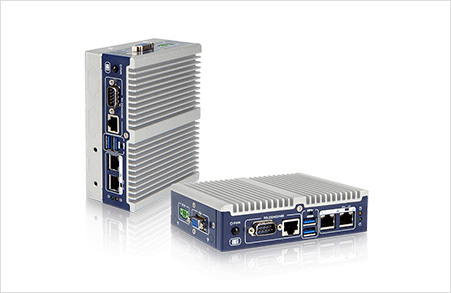

構造

Extruded aluminum alloy

顏色

顏色

Blue & Silver

尺寸

尺寸

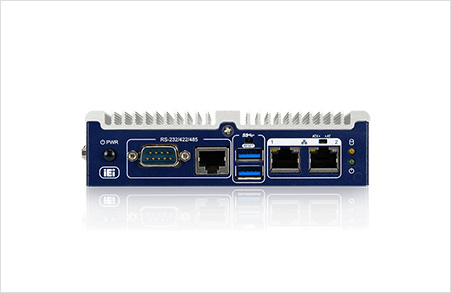

ITG-100-AL-E1/S: 137 x 102.8 x 36.2 (WxDxH) (mm)

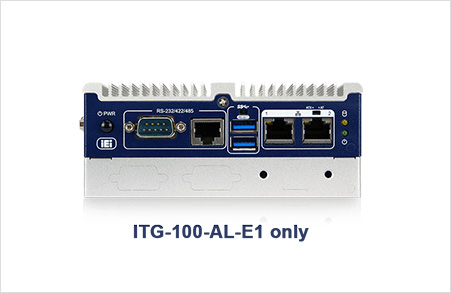

ITG-100-AL-E1: 137 x 102.8 x 56.2 (WxDxH) (mm)

重量

重量

ITG-100-AL-E1/S: 0.67 kg/1.03 kg

ITG-100-AL-E1: 0.86 kg/1.22 kg

運行環境

操作溫度

-20°C ~ 60°C with air flow (SSD)

濕度

10% ~ 95%, non-condensing
