Spec Item

Description

Form factor

SBC Form Factor

CPU:

Intel 7th Gen Core CPU &

Intel® Core? i7-6700TE (2.4 GHz, quad-core, TDP=35W)

Intel® Core? i5-6500TE (2.3 GHz, quad-core, TDP=35W)

Chipset: Intel® Q170

System Memory:

2 x 260-pin DDR4 SO-DIMM, pre-installed one 4GB (system max: 32GB)

Power:

Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC

Consumption: 19 V@3.68 A (Intel® Core? i7-6700TE with 8 GB memory)

Reliability:

Operating Shock - Half-sine wave shock 5G; 11ms; 100 shocks per axis

Operating Vibration - MIL-STD-810G 514.6 C-1 (with SSD)

Safety/EMC - CE/FCC

IPMI: 1 x iRIS-2400 (optional)

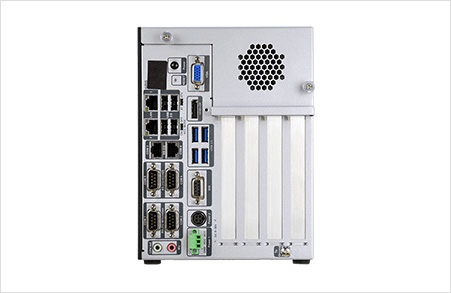

I/O Interface

I/O Ports

USB: 4 x USB 3.0, 4 x USB 2.0

Ethernet: 2 x RJ-45

LAN1 (iRIS): Intel® I210 PCIe controller

LAN2: Intel® I219LM PCIe controller

COM Port:

4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)

2 x RS-232/422/485 (DB-9)

Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output

Display:

1 x VGA (Up to 1920 x 1200@60Hz)

1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz)

1 x iDP (optional)

Audio: 1 x Line-out, 1 x Mic-in

Expansion Slots

Expansion Slots

PCIe Mini:

1 x Half-size PCIe Mini slot

1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)

System

Cooling method / System Fan

Fanless

Drive Bays

2 x 2.5“ SATA 6Gb/s HDD/SSD bay (RAID 0/1 support)

Indicator&Buttons

Buttons

1 x Power Button

1 x Reset Button

1 x AT/ATX Switch

1 x ACC Mode

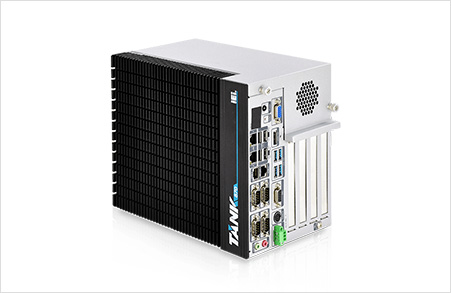

Physical Characteristics

Construction

Extruded aluminum alloys

Color

Color

Black C + Silver

Dimensions

Dimensions

82.2 x 255.2 x 204 (WxDxH) (mm)

Weight

Weight

3.5 kg/4.5 kg

Environment

Operating Temperature

i7-6700TE -20°C ~ 45°C with air flow (SSD)

i5-6500TE -20°C ~ 60°C with air flow (SSD)

Humidity

10% ~ 95%, non-condensing
