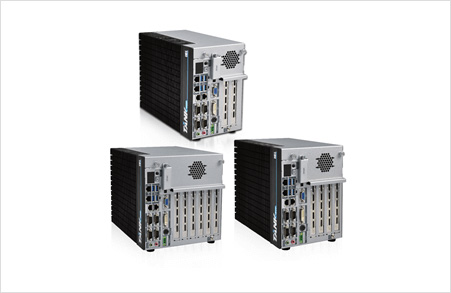

TANK-860-HM86
Intel? HM86 芯片組 + 第四代 Intel? Core? CPU
擴展槽具有極大靈活性
2-插槽 型: 2 x PCIe by 16, 1 x PCIe Mini 插槽
4-插槽 型: 2 x PCIe by 16, 2 x PCI, 2 x PCIe Mini 插槽
6-插槽 型: 1 x PCIe by 16, 2 x PCIe by 4, 3 x PCI, 2 x PCIe Mini 插槽
IPMI 功能適用于用于遠程控制管理
三個獨立的視頻輸出支持高分辨率
2 x 2.5" SATA HDD bay 設計滿足高存儲需求
規格

Spec Item

Description

Form factor

SBC Form Factor

CPU:

Intel® Core? i5-4400E 2.7 GHz

Chipset:Intel® HM86

System Memory

2 x 204-pin DDR3 SO-DIMM slot.

Pre-installed one 4 GB SO-DIMM(system max: 16 GB)

I/O Interface

I/O Ports

4 x USB 3.0

2 x USB 2.0

Ethernet:

2 x RJ-45

1 x PCIe GbE by Intel® I210

1 x PCIe GbE by Intel® I217LM

COM Port:

4 x RS-232 (DB-9, two with isolation)

2 x RS-422/485 (RJ-45)

Digital I/O:8-bit digital I/O, 4-bit input/4-bit output

Display:

1 x VGA, 1 x DVI-I, 1 x DisplayPort

Resolution

VGA: Up to 1920 x 1200@60Hz

DVI-I: Up to 2500 x 1600@60Hz

Displayport: Up to 2500 x 1600@60Hz

Audio:

1 x Line-out, 1 x Mic-in

Wireless 1 x 802.11b/g/n (optional)

Expansion Slots

Expansion Slots

PCI/PCIe

2 A: Two PCIe x8 (physical PCIe x16 slot)

4 A: Two PCIe x8 (physical PCIe x16 slot) +2 x PCI

6 A: One PCIe x8 (physical PCIe x16 slot) +two PCIe x4 + three PCI

PCIe Mini

2A: 1 x Full-size (co-lay mSATA)

4A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)

6A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)

System

Cooling method / System Fan

Fanless

Drive Bays

2 x 2.5"" SATA 6Gb/s HDD/SSD bay

Color

Color

Black C + Silver

Dimensions

Dimensions

2 slot: 121.5 x 255.2 x 205

4 slot: 154.8 x 255.2 x 205

6 slot: 195.4 x 255.2 x 205

Environment

Operating Temperature

-20°C ~ 60°C with air flow (SSD)

Humidity

5% ~ 95%, non-condensing
