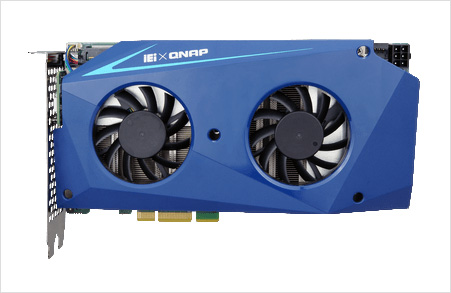

Mustang-200
Dual 10Gbps network based x86 computing accelerator
Decentralized computing architecture for independent tasks
PCI Express x4 delivers scalable and flexible solution
Two Intel? Core? i7-7567U/i5-7267/Celeron? 3865U processors, up to 4.00 GHz
Support high-end graphics engine - Intel? Iris? Plus Graphics 650
Pre-installed 32 GB DDR4 (max. 64 GB) and 1 TB NVMe (max. 2 TB)
規(guī)格

Spec Item

Description

System

CPU

Two (2) Intel Kabylake ULT CPU

Intel® Core? i7-7567U (28 W) (4M Cache, up to 4.00 GHz)

Intel® Core? i5-7267U (28 W) (4M Cache, up to 3.50 GHz)

Intel® Celeron® 3865U (15W) (2M Cache, 1.80 GHz)

Memory Max.

(2 SO-DIMMs per CPU)

4 x DDR4 8GB SO-DIMM (Core? i7/i5 SKU)

4 x DDR4 2GB SO-DIMM (Celeron® 3865U SKU)

Storage

2 x Intel® SSD 600P series (Core? i7/i5 SKU only) (512GB M.2 80mm PCIe 3.0 x4, 3D1, TLC)

Power

Input

12V PCIe 6-pin power input

Power consumption

12V@7.41A (Intel® Core? i7-7567U SKU)

Environment

Operating Temperature

0°C ~ 40°C

Humidity

10% ~ 90%

Dimensions

Dimensions

40mm x 210mm x 111mm

Weight

Weight

GW: 1200g / NW: 700g

I/O Interface

I/O Interface

4 x Internal USB 2.0(pin header)
