規格

描述

顯示

顯示輸出

Triple Independent Displays

1 x HDMI up to 3840x2160@60Hz

1 x DP up to 3840x2160@60Hz

1 x Internal LVDS Up to 1920x1200@60Hz

系統

CPU

Intel® Celeron® processor 4305UE (2.20GHz, Dual Core, 2MB cache, TDP=15W)

Intel® Core? i3-8145UE (2.10GHz, Dual Core, 4MB cache, TDP=15W)

Intel® Core? i5-8365UE (1.6GHz, Quad Core, 6MB cache, TDP=15W)

Intel® Core? i7-8665UE (1.9GHz, Quad Core, 8MB cache, TDP=15W)

最大內存

Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs support up to 32GB

I/O 接口

顯示端口

1 x HDMI

1 x DP

1 x LVDS

以太網

1 x PCIe GbE LAN Intel® i211 controller

1 x PCIe GbE LAN Intel® i219 controller

音頻

Realtek ALC662

I/O 接口

I/O 接口

1 x Audio(Analog audio (2x5 pin))

1 x Digital I/O(8-bit digital I/O (2x5 pin))

Expansion / Front panel(1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin))

1 x Internal RS-232(1x9 pin, P=1.25)

1 x Internal RS-232/422/485(1x4 pin, P=2.0)

2 x Internal USB 2.0(2x4 pin, P=2.0)

2 x LAN LED(1x2 pin)

2 x SATA 6Gb/s(with 5V SATA power connector)

1 x SMBus(SMBus / I²C 1 x 4-pin connector)

電源

輸入

12V DC

功耗

12V@6.62A (Intel® Core? i7 8665UE CPU with Two 16GB 2666MHz DDR4 Memory

電源插孔

Internal power connector (2x2 pin)

運行環境

操作溫度

-20°C ~ 60°C

Safety & EMC

Support AT/ATX mode

濕度

5% ~ 95%, non-condensing

存儲溫度

-30°C ~ 70°C

存儲

存儲

2 x SATA 6G/s with 5V SATA power connector

存儲

1 x M.2 slot with 2280 M key

尺寸

尺寸

115mm x 165mm

重量

重量

GW:850g / NW:350g

擴展插槽

擴展插槽

1 x M.2 slot with 2230 A key

1 x SIM card

看門狗計時器

看門狗計時器

Software programmable support 1~255 sec. system reset

CPU 散熱器

CPU 散熱器

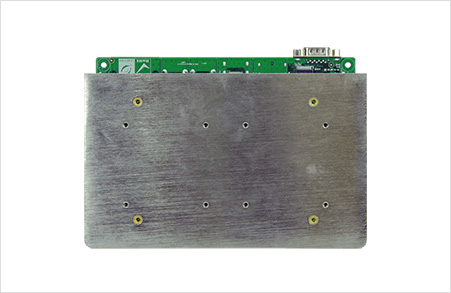

Heatspreader

USB 連接器 by Pin

USB 連接器 by Pin

2 x USB 2.0 (2x4 pin, P=2.0)

PCIe Mini

PCIe Mini

1 x Full-size PCIe Mini slot

兼容操作系統

兼容操作系統

Windows® 10 Enterprise RS5 (64-bit) , ubntu ,susa , yocto project , Wind River VxWorks 7.0 , Andorid (64 bit)

安全

安全

1 x TPM (2x10 pin, p=0.5) with SPI interface
