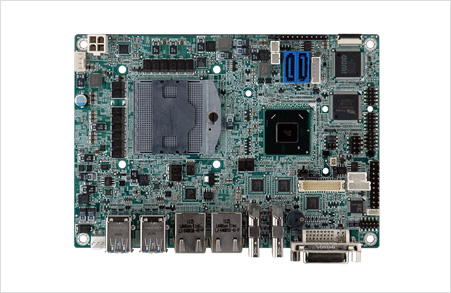

NANO-QM770
EPIC SBC with Socket G2 for Intel? 22nm mobile processor
Triple independent display supports with dual HDMI+DVI/dual HDMI+LVDS (HDMI V1.3a compliant)
1066/1333/1600 MHz DDR3 SDRAM supports up to 8 GB
Supports three COM, four USB 3.0, two SATA 6Gb/s and audio
Intel? GbE LAN with Intel? AMT 8.0 supported
IEI One Key Recovery solution allows you to create rapid OS backup and recovery
規(guī)格

Spec Item

Description

CPU Cooler

CPU Cooler

CF-989A-RS-R12 / CF-989B-RS

Display

Display

Dual display supported 1 x DVI-I 2 x HDMI 1 x 24-bit dual-channel LVDS

Environment

Humidity

5% ~ 95% non-condensing

Operating Temperature

-10°C ~ 60°C (14°F ~ 140°F)

Expansion Slots

Expansion Slots

1 x PCIe Mini card slot with

mSATA support

I/O Interface

Audio

Realtek ALC662 HD Audio codec

Digital I/O

8-bit digital I/O (4-bit input / 4-bit output)

Ethernet

LAN1: Intel® 82583V PCIe controller

LAN2: Intel® 82579 PHY with Intel® AMT 8.0 supported

I/O Interface

2 x RS-232

1 x RS-422/485

4 x USB 3.0

2 x USB 2.0

1 x 4-pin wafer for SMBus

1 x 4-pin wafer for I²C

1 x 5-pin header for infrared

1 x PS/2 KB/MS

1 x TPM connector (2x10 pin)

I/O Interface

I/O Interface

2 x USB 2.0

4 x USB 3.0

2 x RS-232

1 x RS-422/485

Option

iRIS

N/A

Power

Power consumption

12V@4.89A (Intel® 1.8GHz CPU with 1333MHz DDR3 4GB memory)

Storage

Storage

2 x SATA 6Gb/s

System

Chipset

Intel® QM77

CPU

Intel® Core? i7/i5/i3, Celeron® Mobile processor

CPU Socket

Socket G2

Memory Max.

1 x 204-pin 1600/1333MHz DDR3 SO-DIMM (system max. 8GB)

Watchdog Timer

Watchdog Timer

Software programmable and supports 1~255 sec. system reset
