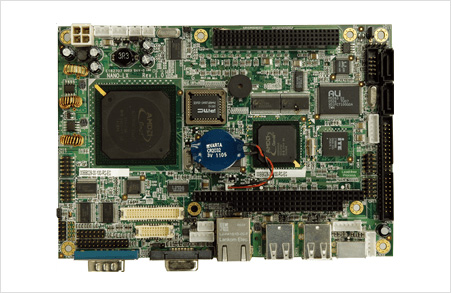

NANO-LX
EPIC form factor AMD LX800 processor embedded board with RoHS compliant
DDR 400 MHz SO-DIMM SDRAM up to 1 GB
VGA, 24-bit TTL, and 18-bit single-channel LVDS
SATA RAID 0, 1, JBOD function support
Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
IEI One Key Recovery solution allows you to create rapid OS backup and recovery
規(guī)格

Spec Item

Description

CPU Cooler

CPU Cooler

N/A

Display

Display

VGA integrated in AMD LX800

24-bit single-channel TTL

18-bit single-channel LVDS

Environment

Humidity

10% ~ 95%, non-condensing

Operating Temperature

0°C ~ 60°C

Expansion Slots

Expansion Slots

1 x PC/104-Plus

I/O Interface

Audio

Realtek ALC203 with AC’97 Codec

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Ethernet

LAN: 10/100Mbps Realtek RTL8100C

I/O Interface

I/O Interface

4 x USB 2.0

1 x RS-232

4 x Internal USB 2.0

5 x Internal RS-232

1 x LPT

Power

Power consumption

12V@ 0.92A (AMD LX800 with 400MHz 256MB DDR RAM)

Storage

Storage

1 x CF Type II

1 x IDE

2 x SATA (VIA VT6421A RAID 0, 1 function support)

System

Chipset

AMD Geode LX800 + AMD CS5536

CPU

AMD Geode? LX800 (500MHz) processor

Memory Max.

One 200-pin 400/333MHz DDR SDRAM SO-DIMM Supported (System max. 1GB)

Watchdog Timer

Watchdog Timer

Software programmable supports 1-255 sec. system reset
