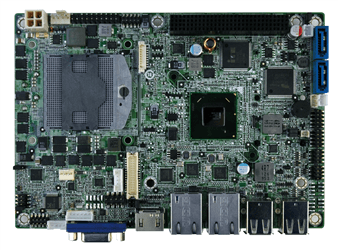

NANO-HM650
EPIC SBC with Socket G2 for Intel? 2nd generation Core? i7/i5/i3 and Celeron? processor
VGA/24-bit dual-channel LVDS/HDMI for dual display support
1066/1333HMz DDR3 SDRAM supported (system max. 8 GB)
Supports three COM, eight USB 2.0, two SATA 6Gb/s, PCI-104 and audio
TPM V1.2 hardware security function supported by TPM module
IEI One Key Recovery solution allows you to create rapid OS backup and recovery
規(guī)格

Spec Item

Description

Display

Display

Dual display supported

VGA (up to 2048x1536@75Hz)

HDMI (up to 1920x1200@60Hz)

18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-10°C ~ 60°C

Expansion Slots

Expansion Slots

1 x Full-size PCIe Mini card slot

1 x PCI-104 slot (PCI signal)

Form factor

Form factor

EPIC

I/O Interface

Audio

Realtek ALC662 HD Audio codec

Digital I/O

8-bit digital I/O (4-bit input / 4-bit output)

Ethernet

Dual LAN: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

I/O Interface

I/O Interface

4 x USB 2.0

4 x Internal USB 2.0

2 x Internal RS-232

1 x Internal RS-422/485

Power

Power consumption

12V@4.85A (2.6GHz Intel® Core i5-2540M with 1333 MHz 4 GB DDR3 memory)

Storage

Storage

2 x SATA 6Gb/s with 5V SATA power connector

System

Chipset

Intel® HM65

CPU Socket

Socket G2 for 2nd generation Intel® Core? i7/i5/i3 and Celeron® mobile processor

Memory Max.

One 204-pin 1066/1333 MHz DDR3 SDRAM SO-DIMM slot supports up to 8 GB

Watchdog Timer

Watchdog Timer

Software programmable supports 1~255 sec. system reset
