Spec Item

Description

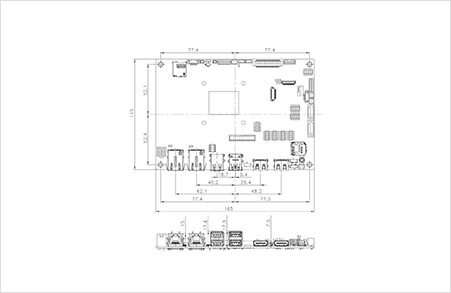

Dimensions

Dimensions

115mm x 165mm

Display

Display

Triple Independent Displays:

1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

2 x HDMI (up to 3840x2160 @ 30Hz)

1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)

Display Output

1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz) 2 x HDMI (up to 3840x2160 @ 30Hz) 1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) (colay with HDMI1)

Environment

Operating Temperature

-20°C ~ 70°C

Storage Temperature

-40°C ~ 85°C

I/O Interface

Audio

Realtek ALC662 HD Audio Codec

Digital I/O

8-bit digital I/O (2x5 pin)

Ethernet

2x Intel® I211-AT PCIe controller

Expansion

1 x Full/Half-size PCIe Mini slot (with SIM holder)

1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)

1 x Micro SD (Optional)

1 x SIM holder (Optional)

I²C

1 x I2C (1x4 pin)

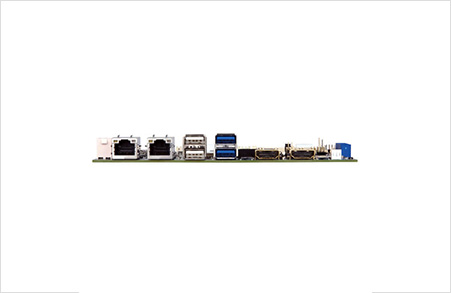

I/O Interface

I/O Interface

4 x Internal RS-232(2x5 pin , p=2.0)

2 x Internal RS-232/422/485(2x5 pin, p=2.0)

2 x Internal USB 2.0(2x4 pin, P=2.0)

1 x KB/MS(1x6 pin)

2 x LAN LED(1x2 pin)

2 x SATA 6Gb/s(with 5V power connector (no RAID))

2 x USB 2.0

2 x USB 3.0

Power

Power consumption

12V@2.13A (Intel® Pentium® N4200 CPU with one 8GB 1600MHz DDR3L memory)

12V@2.81A (Intel® Atom? x7-E3950 CPU with one 8GB 1600MHz DDR3L memory)

Power Supply

9V~30V DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

System

CPU

Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)

Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)

Intel® Atom? x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)

Intel® Atom? x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)

Intel® Atom? x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)

Graphcis Controller

Intel® HD Graphics Gen9 Low Power, 18 Execution Units

4K Codec Decode & Encode for HEVC 4, H.264, VP8, SVC, MVC

Memory Max.

One 204-pin 1866/1600MHz Single-channel DDR3L SO-DIMM supports up to 8GB

Watchdog Timer

Watchdog Timer

Software programmable, support 1~255 sec. system reset

Weight

Weight

GW: 850g / NW: 350g
