Part Number

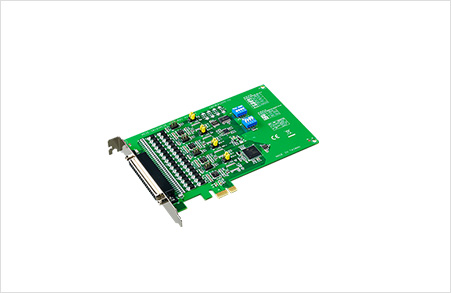

PCIE-1612B-AE

PCIE-1612C-AE

Environment

Operating Humidity

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)

Operating Temperature

-10 ~ 60° C (14 ~ 144° F)

-10 ~ 60° C (14 ~ 144° F)

General

Bus

PCIe

PCIe

Connectors

1x Female DB37

1x Female DB37

Power Consumption

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications

CE, FCC, RoHS

CE, FCC, RoHS

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

168 x 111 mm (6.6" x 4.4")

168 x 111 mm (6.6" x 4.4")

Communications

Ports

4

4

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

XR17V352

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485

Protection

ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Isolation Protection

-

3 KV

Software

Bundled Software

ICOM Tools

ICOM Tools
