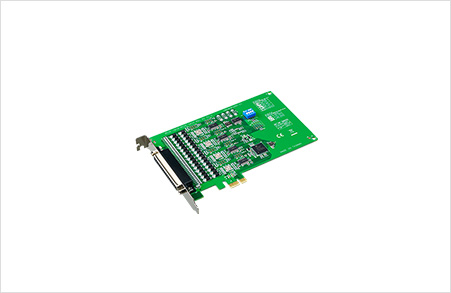

PCIE-1610
PCI Express bus 2.0 compliant
Speeds up to 921.6 kbps for extremely fast data transmission
Supports any baud rate setting
4 x RS-232 or RS- 232/422/485 ports
Operating systems supported: Windows XP/Vista/7/8/10, Linux
XR17V354 UART with 256-byte FIFOs
規(guī)格

Part Number

PCIE-1610B-AE

Environment

Operating Humidity

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

Operating Temperature

-10 ~ 60° C (14 ~ 144° F)

General

Bus

PCIe

Connectors

1x Female DB37

Power Consumption

260 mA @ +3.3 V (typ.)

Certifications

CE, FCC, RoHS

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

168 x 111 mm (6.6" x 4.4")

Communications

Ports

4

Data Bits

5,6,7,8

FIFO

256 bytes

Parity

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

Serial/CAN/GPIB/USB

RS-232

Protection

ESD Protection

15KV (air), 8KV (contact)

Surge Protection

1 KV

EFT Protection

1 KV

Software

Bundled Software

ICOM Tools
