Part Number

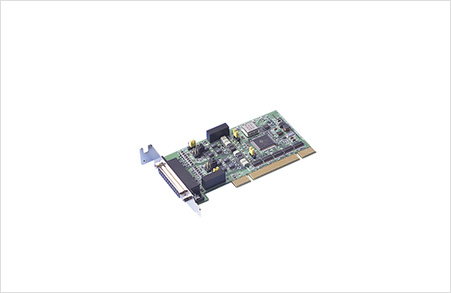

PCI-1602UP-CE

Communications

Ports

2

Data Bits

5, 6, 7, 8

FIFO

128 bytes

Parity

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps

Stop Bits

1, 1.5, 2

Data Flow Control

CTS/RTS, Xon/Xoff

Communication Controller

PI7C8952

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

Environment

Operating-Temperature

0 ~ 65° C (32 ~ 149° F)

Operating Humidity

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

General

Bus

PCI

Connectors

1 x Female DB25

Power Consumption

5 V @ 400 mA

Certifications

CE, FCC, RoHS

OS Support

Windows XP/7/8/10 and Linux

Dimensions

119.91 x 64.41 mm (4.7" x 2.5")

Protection

ESD Protection

15KV (air), 8KV (contact)

Surge Protection

1 KV

Isolation Protection

2.5 KV

EFT Protection

1 KV

Software

Bundled Software

ICOM Tester , ICOM Tools
