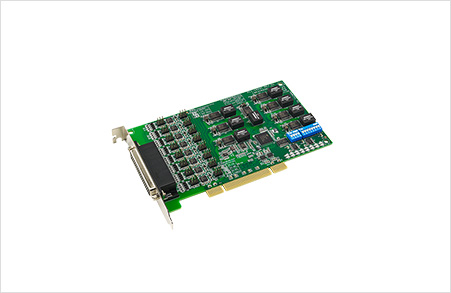

PCI-1622
符合PCI總線協議2.2
支持串行速度高達921.6 kbps，任意波特率設置
8端口RS-232,或8端口RS-422/485
OXuPC1954 UARTs支持128字節先進先出FIFO標準
PCI即插即用自動分配輸入/輸出地址
支持操作系統：Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, 和QNX
提高系統性能的中斷狀態寄存器
預留終端電阻空間
RS-485數據流自動控制
實用程序（ICOM工具）強大，易用
通用PCI，支持3.3伏或5伏PCI總線信號
10,00伏直流電浪涌保護
規格

Part Number

PCI-1622B-DE

PCI-1622C-DE

Communications

Ports

8

8

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V358

XR17V358

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485

Environment

Operating-Temperature

-10 ~ 60° C (14 ~ 140° F)

-10 ~ 60° C (14 ~ 140° F)

Operating Humidity

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)

General

Bus

PCI

PCI

Connectors

1x Female DB62

1x Female DB62

Power Consumption

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications

CE, FCC, RoHS

CE, FCC, RoHS

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

174.65 x 106.67 mm (6.88”x 4.2”)

174.65 x 106.67 mm (6.88”x 4.2”)

Protection

ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Isolation Protection

-

3 KV

Software

Bundled Software

ICOM Tools

ICOM Tools
