Part Number

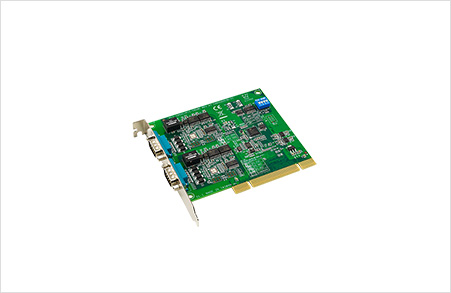

PCI-1604C-AE

Communications

Ports

2

Data Bits

5,6,7,8

FIFO

256 bytes

Parity

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

Serial/CAN/GPIB/USB

RS-232

Environment

Operating-Temperature

-10 ~ 60° C (14 ~ 140° F)

Operating Humidity

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

General

Bus

PCI

Connectors

2 x Male DB9

Power Consumption

260 mA @ +3.3 V (typ.)

Certifications

CE, FCC, RoHS

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

119.91 x 106.67 mm (4.72” x 4.2”)

Protection

ESD Protection

15KV (air), 8KV (contact)

Surge Protection

1 KV

Isolation Protection

3 KV

EFT Protection

1 KV

Software

Bundled Software

ICOM Tools
