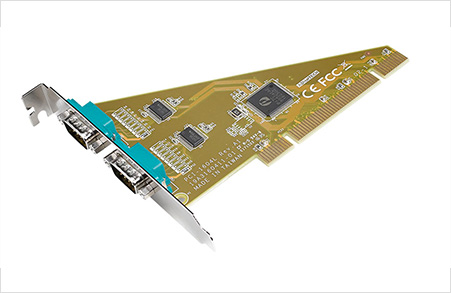

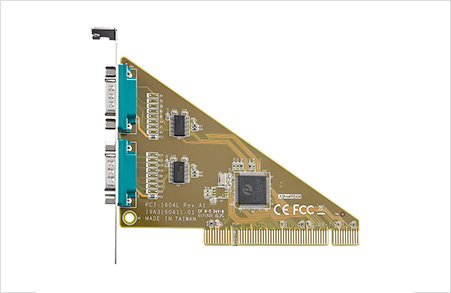

PCI-1604L
PCI bus 2.2 compliant
Speeds up to 921.6 kbps for extremely fast data transmission
Level 4 ESD protection (air 15 KV , contact 8 KV)
2 x RS-232 ports
128-byte FIFO
Supported operating systems: Windows XP/7/8/10, and Linux
Operating Temperature -20 ~ 60°C
規(guī)格

Part Number

PCI-1604L-AE

Communications

Ports

2

Data Bits

5,6,7,8

FIFO

128 bytes

Parity

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps

Stop Bits

1,1.5,2

Data Flow Control

RTS/CTS, Xon/Xoff

Serial/CAN/GPIB/USB

RS-232

Environment

Operating-Temperature

-20 ~ 60°C

Operating Humidity

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

General

Bus

PCI

Connectors

2 x Male DB9

Power Consumption

200mA @ +3.3V (typ.)

Certifications

CE, FCC, RoHS

OS Support

Windows XP/7/8/10, and Linux

Dimensions

119.91 x 83.06 mm (4.72" x 3.27")

Protection

ESD Protection

15KV (air), 8KV (contact)

Surge Protection

-

Isolation Protection

-

EFT Protection

1 KV

Software

Bundled Software

ICOM Tools
