Part Number

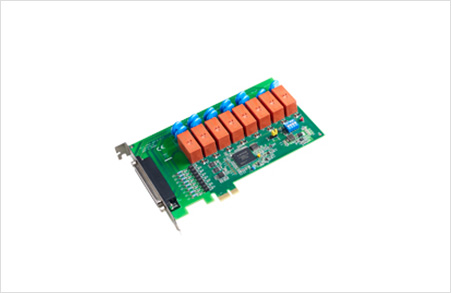

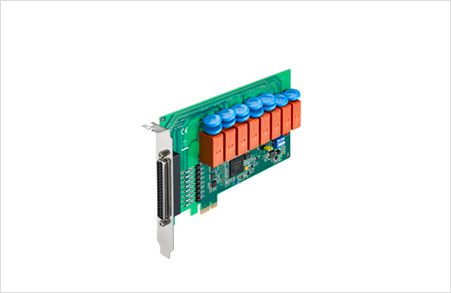

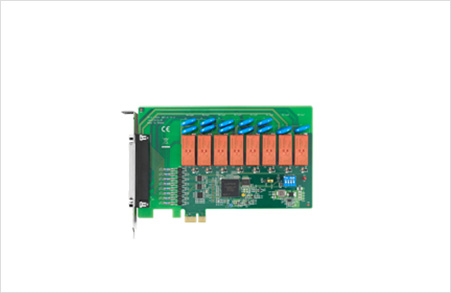

PCIE-1761H-AE

General

Power Consumption

Typical: +3.3 V @ 250 mA, max. +3.3 V @ 1600 mA

OS Support

32-bit/64-bit Windows 7/8/10

Dimensions

175 x 100 mm (6.9" x 3.9")

Bus

PCIe

I/O Connectors

37-pin D-type female connector

Operating Temperature

0 ~ 60° C (32 ~ 140° F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O

Input Channels

8

Input Range

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)

Relay Output

Max. Switching Power

2 A @ 250 VAC, 2 A @ 30 VDC

Channels

8
