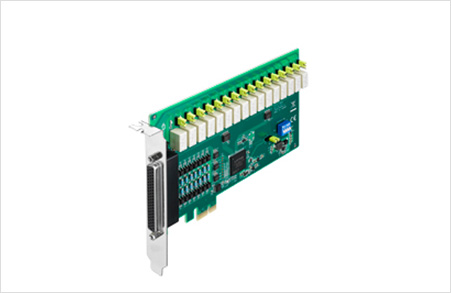

PCIE-1762H
16-ch digital input and 16-ch relay
Interrupt handling capability for all DI channels
Selectable Digital filter time for all DI channels
Output status readable
LED indicator to show activated relays
Selectable Form A or Form B
規(guī)格

Part Number

PCIE-1762H-AE

General

Power Consumption

Typical: 5 V @ 250 mA, Max.: 5 V @ 620mA

OS Support

32-bit/64-bit Windows 7/8/10

Dimensions

175 x 100 mm (6.9" x 3.9")

Bus

PCIe

I/O Connectors

62-pin D-type female

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O

Input Channels

16

Input Range

10 ~ 50 VDC

Relay Output

Max. Switching Power

62.5VA, 15W

Channels

16
