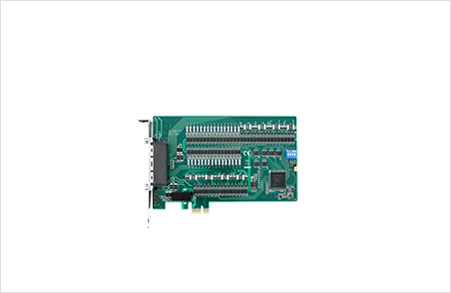

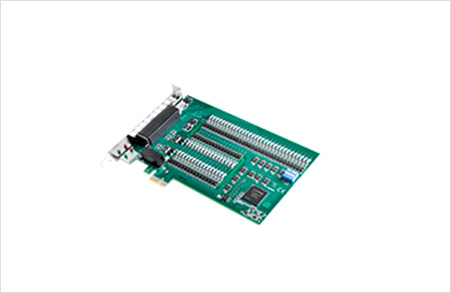

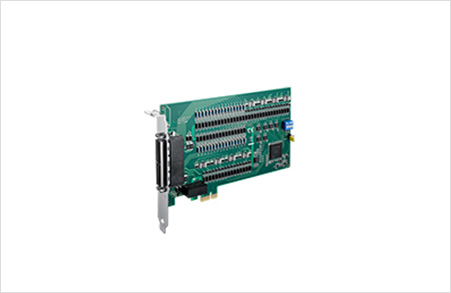

PCIE-1758
PCIE-1758DO and PCIE-1758DIO
128 isolated digital output channels (64 channels for PCI-1758UDIO)
High-voltage isolation on output channels (2,500 VDC)
Wide output range (5 ~ 40 VDC)
High-sink current for isolated output channels (90 mA max./channel)
Current protection for each port
BoardID? switch
Output status read-back
Digital output value retained after hot system reset
Programmable Power-up States
Watchdog timer
PCIE-1758DI and PCIE-1758DIO
128 isolated digital input channels (64 channels for PCI-1758UDIO)
Wide input range (5 ~ 25 VDC)
High ESD protection (2,000 VDC)
Digital Filter function
BoardID? switch
Interrupt handling capability for each channel
規(guī)格

Part Number

PCIE-1758DI-AE

PCIE-1758DIO-AE

PCIE-1758DO-AE

General

Power Consumption

Typical: 3.3V @ 270mA, 12V @ 30mA; Max.:3.3V @ 400mA, 12V @ 260mA

Typical: 3.3V @ 250mA, 12V @ 20mA; Max.:3.3V @ 425mA, 12V @ 250mA

Typical: 3.3V @ 250mA, 12V @ 25mA; Max.:3.3V @ 450mA, 12V @ 235mA

OS Support

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions

175 x 100 mm (6.9" x 3.9")

175 x 100 mm (6.9" x 3.9")

175 x 100 mm (6.9" x 3.9")

Bus

PCIe

PCIe

PCIe

I/O Connectors

MINI-SCSI HDRA-E100 Female

MINI-SCSI HDRA-E100 Female

MINI-SCSI HDRA-E100 Female

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

0 ~ 60°C (32 ~ 140°F)

0 ~ 60°C (32 ~ 140°F)

Programming Language

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O

Input Channels

128

64

0

Input Range

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)

Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)

Output Channels

0

64

128

Output Ranges

5 ~ 40 VDC

5 ~ 40 VDC

5 ~ 40 VDC
